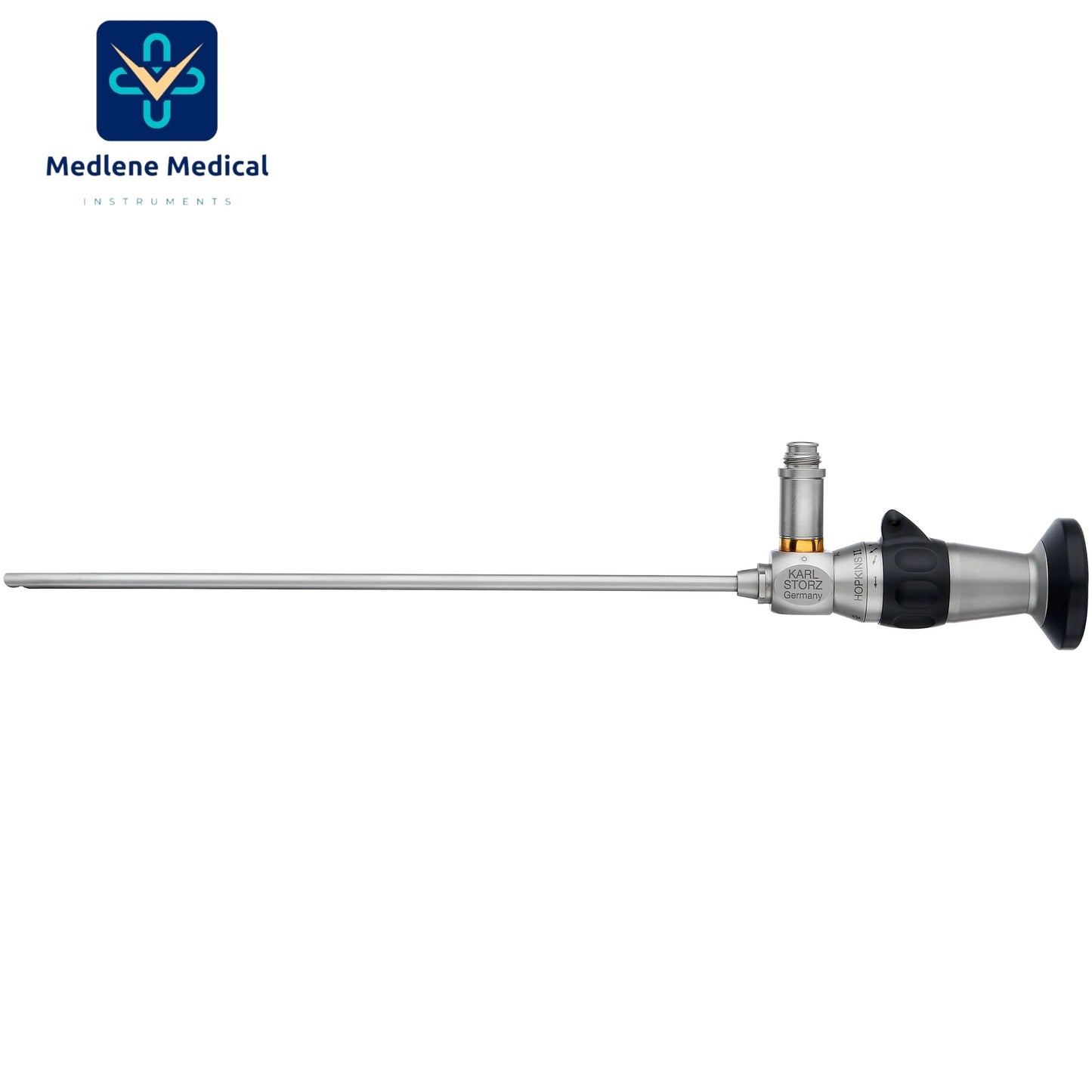

ENDOCAMELEON ARTHRO HOPKINS Telescope
ENDOCAMELEON ARTHRO HOPKINS Telescope
Practical – Lightweight – Ergonomic

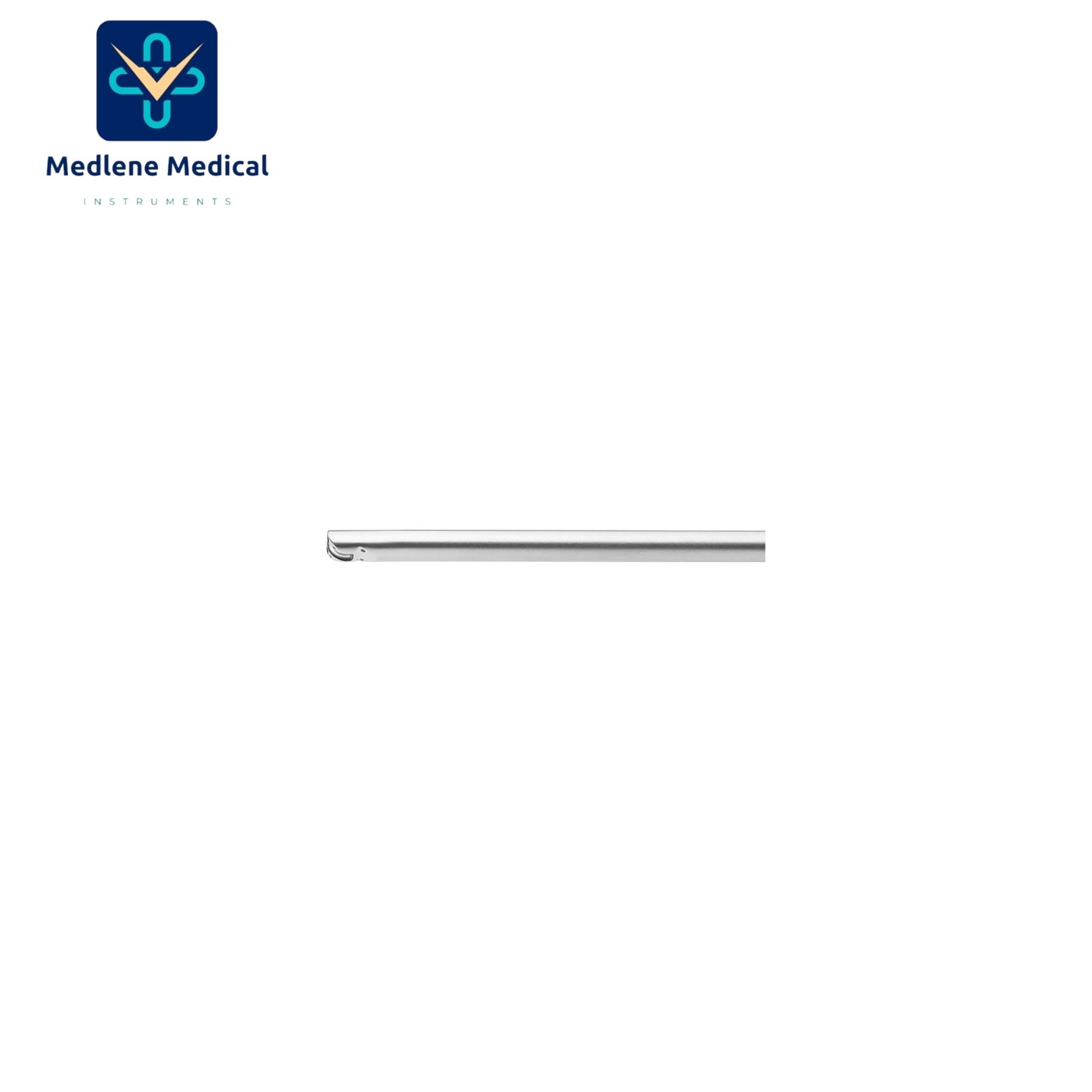

The ENDOCAMELEON® is particularly beneficial for working in tight joint spaces as the all-round view has been greatly enhanced. With the control wheel, the direction of view can be variably adjusted in the joint. This reduces portal changes which results in significant time savings. The unique rod lens system delivers optimal brightness and contrast.
- Comprehensive view of intra-articular zones during surgical procedures thanks to variable direction of view adjustable from 15 to 90 degrees
- At 90 g, extremely lightweight
- Easy-to-operate rotating wheel
| Outer diameter | 4 mm |
| Working length | 18 cm |
| Direction of view | Variable, 15° – 90° |
| Angle of view | enlarged view, wide angle |
| Brand | ENDOCAMELEON® HOPKINS® |
| Light transmission medium | Fiber optic light transmission |
| Adjustability of direction of view | Via a control wheel |
| Position of fiber optic connection | 6h |
| Color code | Gold |
| Autoclavable | Yes |
Product features
Product features
Made in highest quality, surgical grade stainless steel with satin finish to reduce glare. The instrument can be sterilized and reused.
Materials and care
Materials and care
PRODUCTS
This reprocessing instruction applies to reusable surgical and endoscopic instruments supplied by MEDLENE Medical.
GENERAL
Reusable surgical instruments from MEDLENE Medical can be used by medical professionals for a surgical procedure and can be reused after qualified reprocessing.
The professional user selects the appropriate instruments according to the intended function, the tissue to be manipulated and the anatomical structures.
WARNINGS AND PRECAUTIONS
MEDLENE Medical instruments must be cleaned, disinfected,
and sterilized before first use. Protective caps and transport packaging must be
removed beforehand.
A complete functional check must be carried out before each use. Improper use and overstraining due to twisting / levering can lead to breaks and permanent deformation.
Do not use metal brushes or abrasives, as there is a risk of corrosion due to surface damage. The safe
combination of instruments with each other or of instruments with implants must be checked by the user before clinical use.
Be careful when handling sharp tips and cutting edges - risk of injury.
In case of patients with Creutzfeldt-Jakob disease (CJK), suspected CJK or possible variants of this disease, the applicable national regulations regarding the preparation of instruments must be applied. Never leave instruments in disinfectant solution for too long. Follow the instructions of the respective manufacturer.
