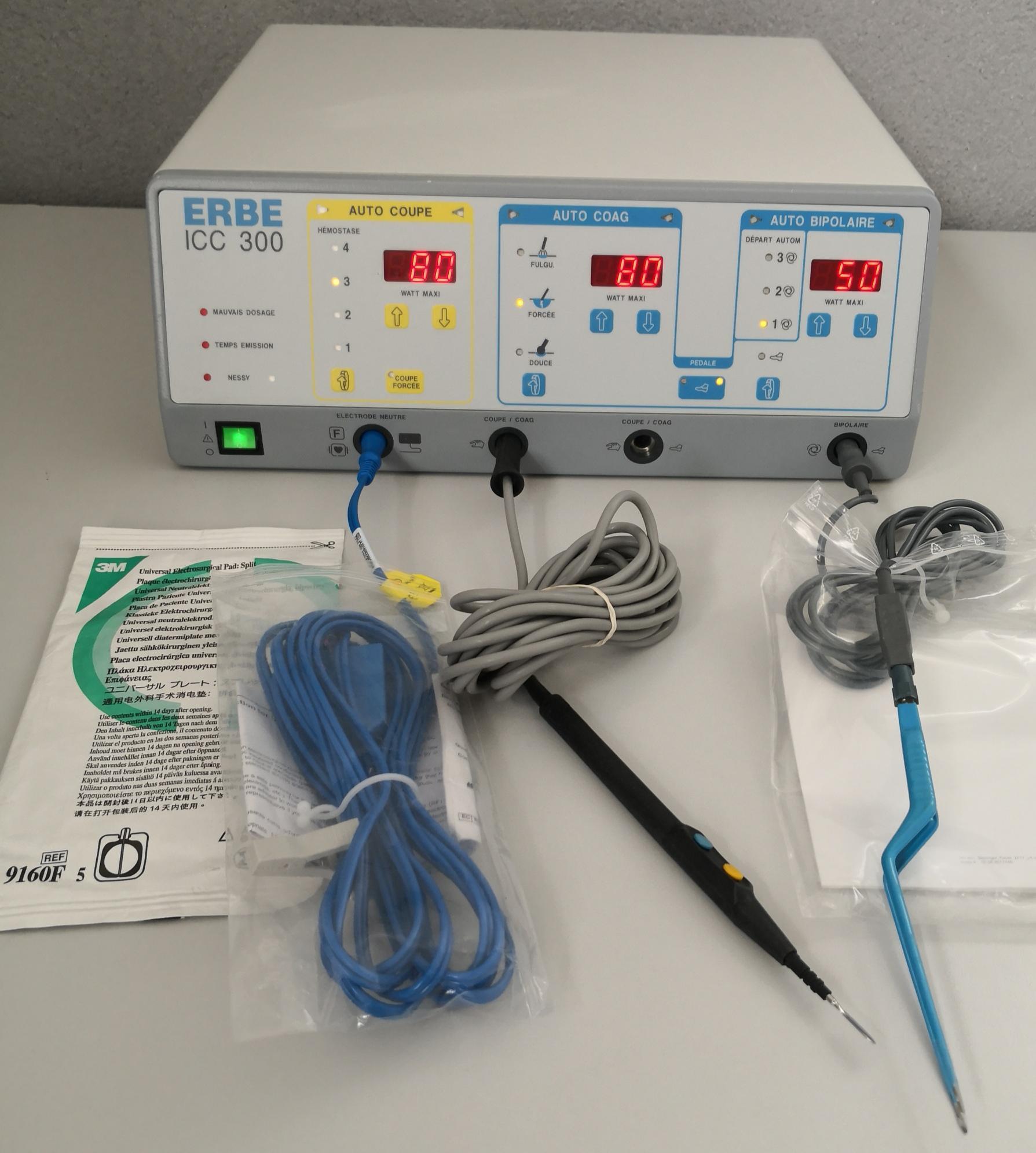

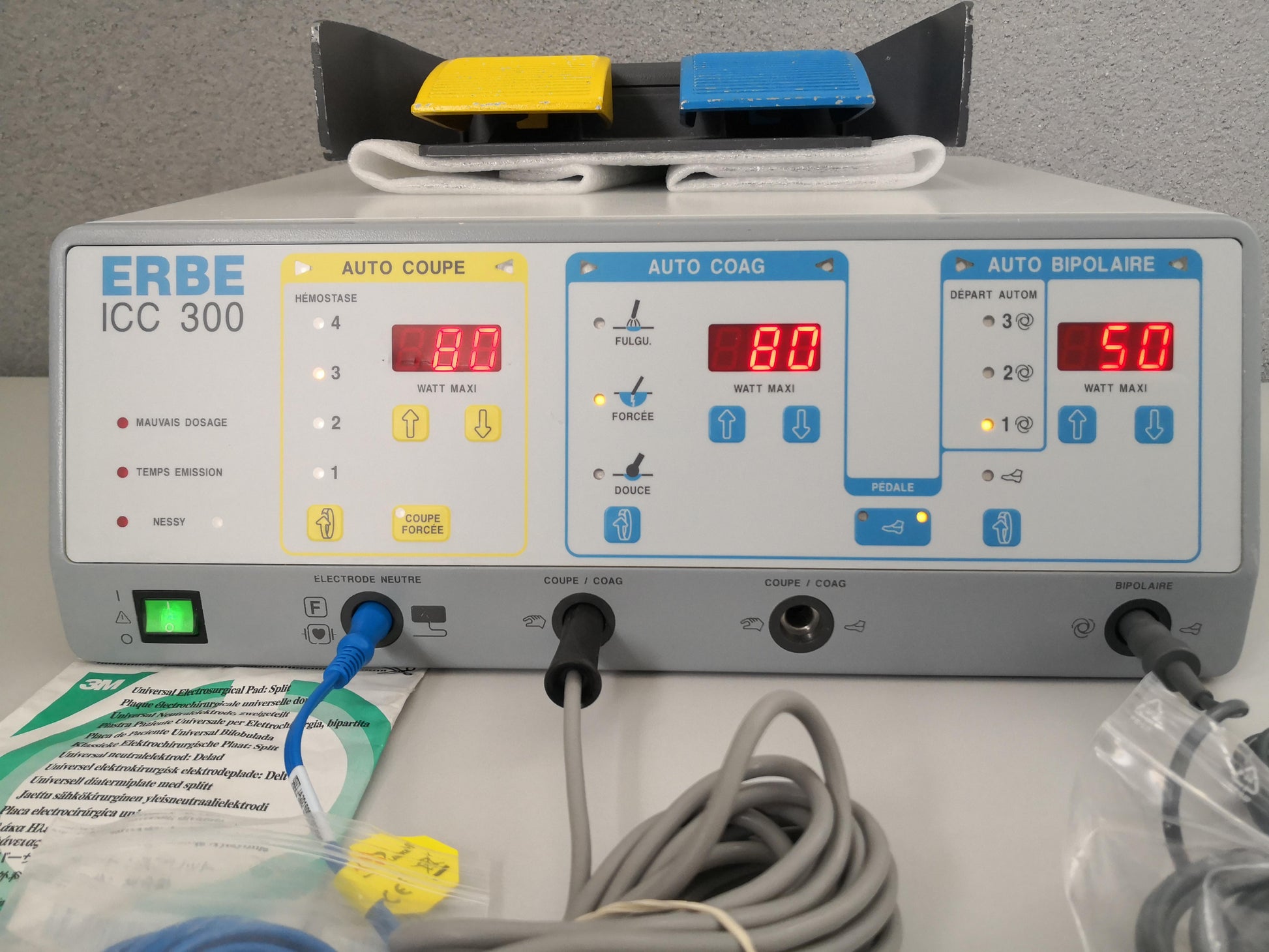

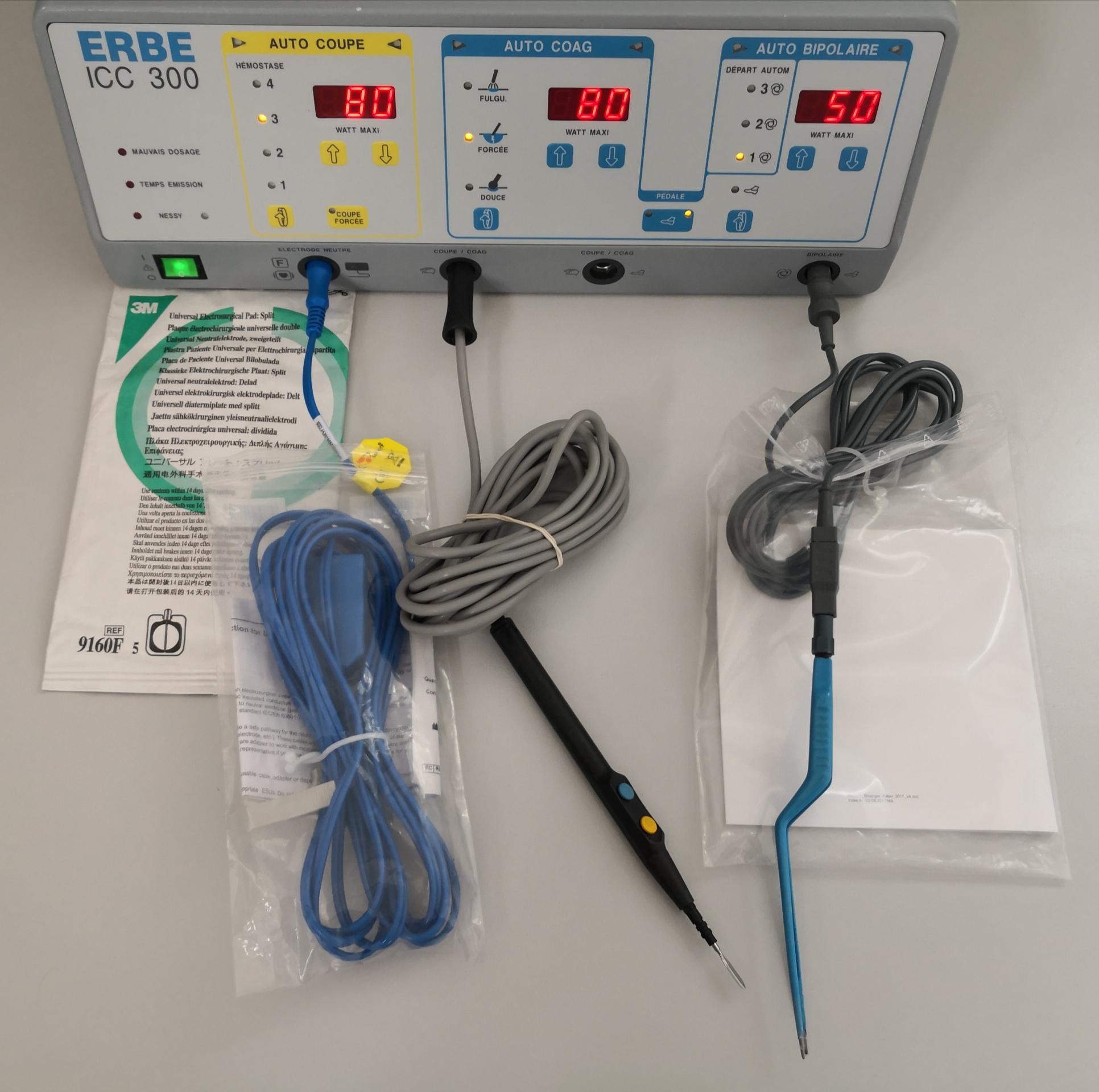

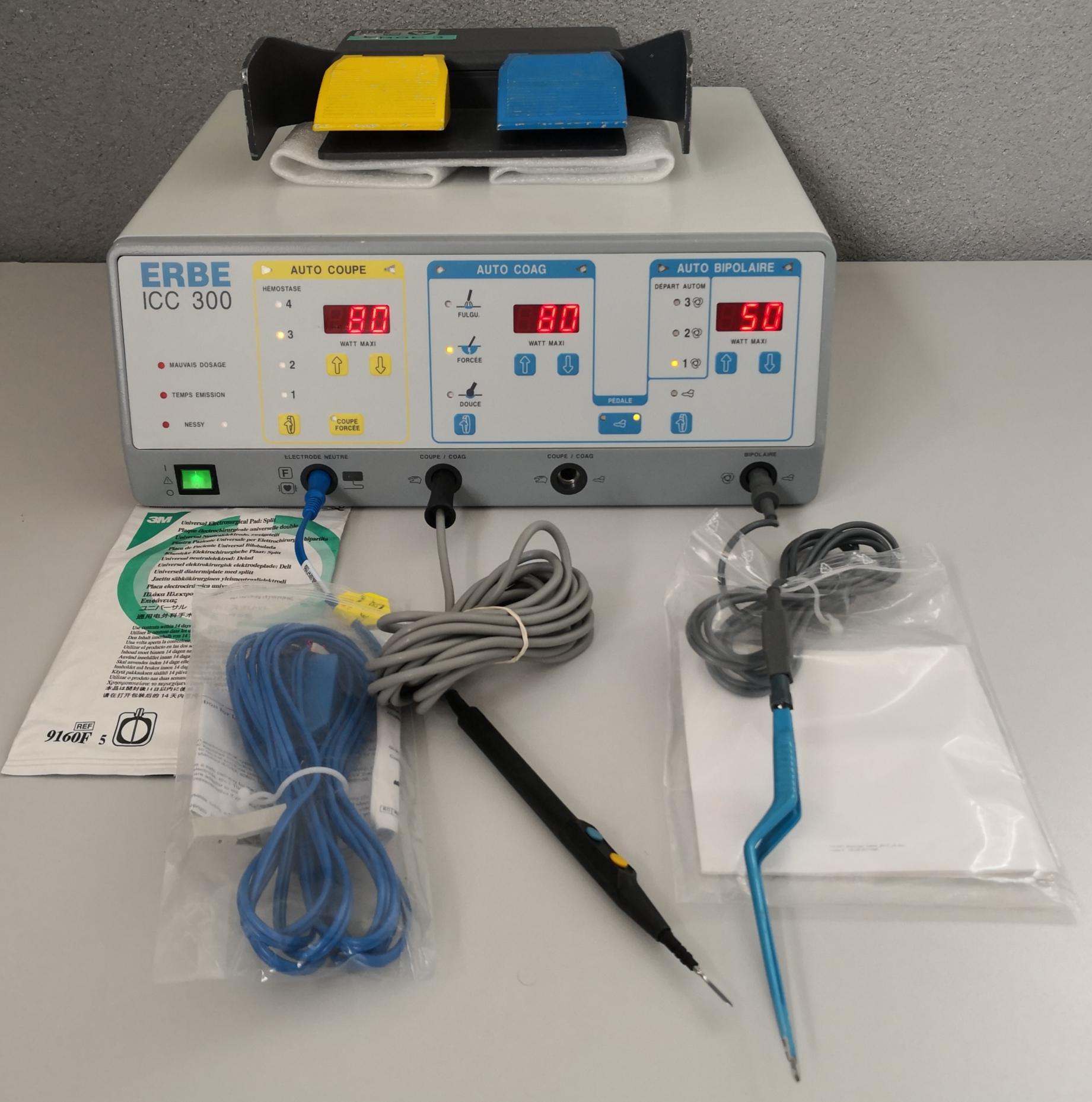

ERBE ICC 300 ELECTROSURGICAL UNIT

ERBE Erbotom ICC 300 Features

The ERBE ICC 300 is a high-frequency surgical unit for cutting and coagulation. It’s the price-conscious solution for medium and major surgical procedures. After all, a smooth routine in the operating room depends on maximum safety, a high degree of comfort in use, and perfect functionality – exactly the features of the ICC 300
. And it also meets the special demands of Minimally Invasive Surgery.

• CUT CONTROL for automatically perfect cuts. Reproducible cut quality with minimum necrosis
• HlGH CUT with specialized arc regulation for underwater cuts or in fatty structures
• SOFT coagulation for precisely controlled coagulation
• No carbonization (SOFT COAG)
• Far less adhesion and electrode soiling
• Bipolar coagulation for even greater safety
• PPS for intelligent support of initial incisions and cutting
• AUTO START for the greater facility of bipolar coagulation
• SPRAY coagulation for better surface effects
• ARGONPLASIVIA coagulation via an integrated plug-in connection

ERBE Erbotom ICC 300 Specifications

Dimensions

• Dimensions (HxWxD) cm, (In) (Display) 41 x 15.2 x 36.8 (16.1 x 5.9 x 14.5)
• Weights, kg (lb) (Display) 10 (22)

Electrical

• Monopolar (Systems) Cut(blend), coagulate
• Max. energy output ( at rated ohms) (SYSTEMS) More than 250 Watt 300
• Max voltage, vp-p (Systems) 1200
• Max. energy output ( at rated ohms) (SYSTEMS) Up to 150 Watt 120
• Max voltage, vp-p (Systems) 380 soft, 5,600 spray
• Bipolar (SYSTEMS) Coagulate
• Max. energy output ( at rated ohms) (SYSTEMS) Up to 150 Watt 120
• Max voltage, vp-p (Systems) 380

Power Connection

• Rated power voltage 240 V / 230 V / 115 V / 110 V / 100 V ± 10 %
• Rated power frequency 50 / 60 Hz
• Power current 4.0 A at 230 – 240 V / 8.0 A at 100 – 115 V
• Power consumption in Standby mode 25 watts <?li>
• Power consumption at max. HF power 620 watts 920 VA
• Current consumption in Standby mode 150 mA at 230 – 240 V / 300 mA at 100 – 115 V
• Potential equalization terminal yes
• Power fuses 2 slow burn, 4 A at 230 – 240 V / 8 A at 100 – 115 V

Environmental Conditions for Storage

• Temperature -40°C to + 70°C
• Air humidity, relative 30% to 95%

Environmental Conditions for Operating

• Temperature +10°C to + 40°C
• Air humidity, relative 30% to 75%, non-condensing

Cutting, monopolar with automatic voltage control (Auto Cut)

• HF voltage waveform unmodulated sinusoidal alternating voltage
• Crest factor C, at RL = 500 ohms C = 1.4 for all settings
• Rated frequency 330 kHz
• Maximum HF voltage at load resistance RL = 8 650 VP
• Dynamic internal impedance in rated load range 0 ohm
• The constancy of the HF voltage at RL> 350 ohms automatically controlled
• Cutting quality 4 coagulation effects selectable by key
• The constancy of the 4 coagulation effects automatically controlled
• HF rated power 300 watts at RL = 500 ohms
• HF power limitation 1 to 300 watts in 1 watt steps
• Setting of the HF power limitation via up/down keys
• Display of the HF power limitation 7-segment display, 3 decimal places
• Precision of the HF power limitation +/- 1 digit or +/- 15%
• Activation of Cutting mode by key or pedal
• HF connecting sockets 2, electronically locked from one another

Cutting, monopoly with automatic arc control (High Cut)

• HF voltage waveform unmodulated sinusoidal alternating voltage
• Crest factor C, at RL = 500 ohms C = 1.4 for all settings
• The rated frequency of the HF voltage is 330 kHz
• Maximum HF voltage at load resistance RL = 8 570 VP
• The constancy of the intensity of the electric arc automatically controlled
• Cutting quality 4 coagulation effects selectable by key
• The constancy of the 4 coagulation effects automatically controlled
• HF rated power 300 watts at RL = 500 ohms
• HF power limitation 1 to 300 watts in 1 watt steps Setting of the
• HF power limitation via up/down keys Display of the
• HF power limitation 7-segment display, 3 decimal places
• Precision of the HF power limitation +/- 1 digit or +/- 15%
• PPS (Power Peak System) yes
• Activation of Cutting mode by key or pedal
• HF connecting sockets 2, electronically locked from one another

Soft Coagulation (Soft Coag)

• HF voltage waveform unmodulated sinusoidal alternating voltage
• Crest factor C, at RL = 500 ohms C = 1.4 for all settings
• The rated frequency of the HF voltage is 330 kHz
• The peak value of the HF voltage max. 1900 VP
• The constancy of the HF voltage automatically controlled
• HF-rated power 120 watts at 125 ohms
• HF power limitation (PHFmax.) from 1 watt to 120 watts in 1 watt steps
• Setting of the HF power limitation via up/down keys
• Display of the HF power limitation 7-segment display, 3 decimal places
• Precision of the HF power limitation +/- 1 digit or +/- 15%
• Activation of Cutting mode by key or pedal
• HF connecting sockets 2, electronically locked from one another.
