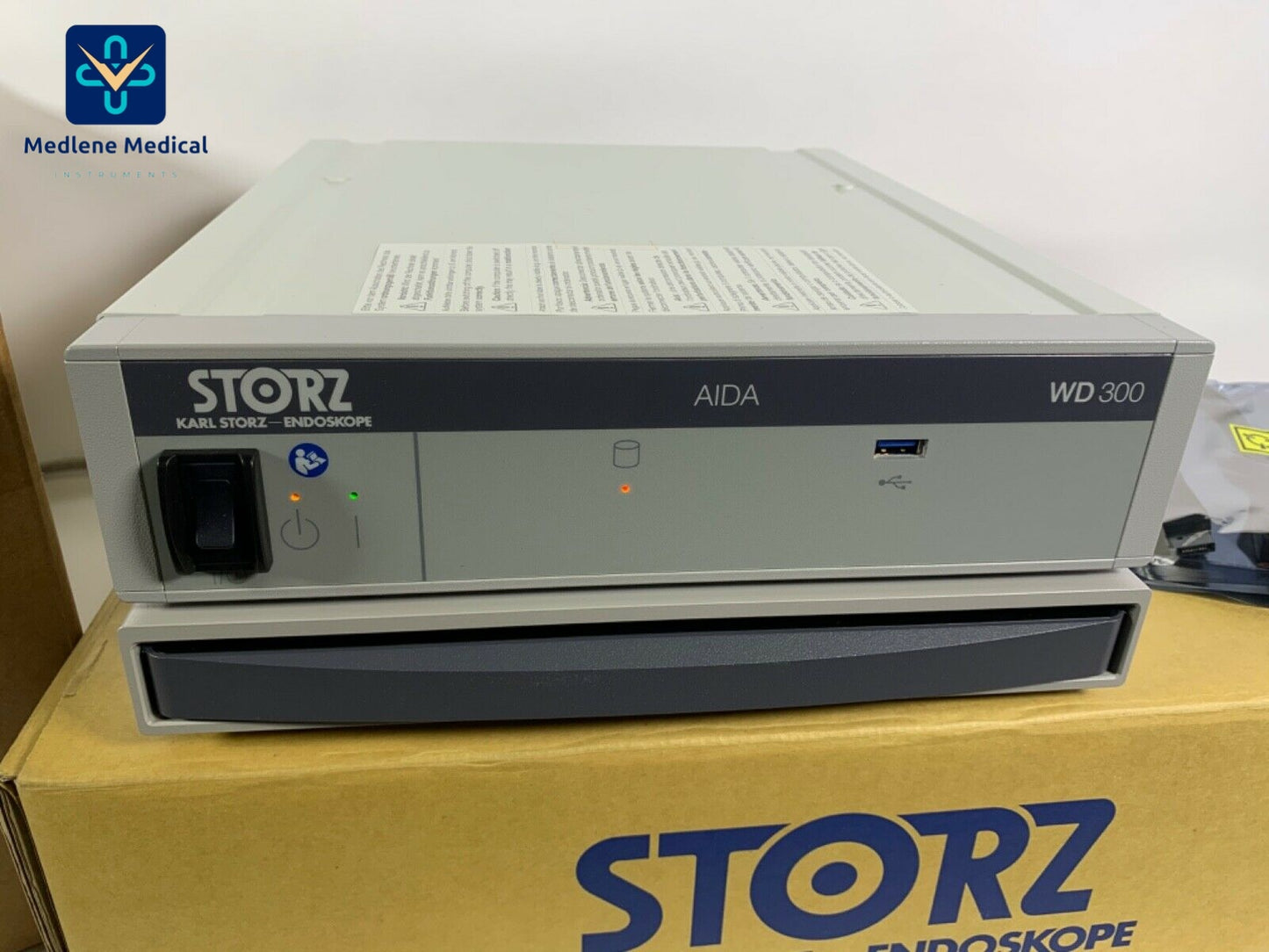

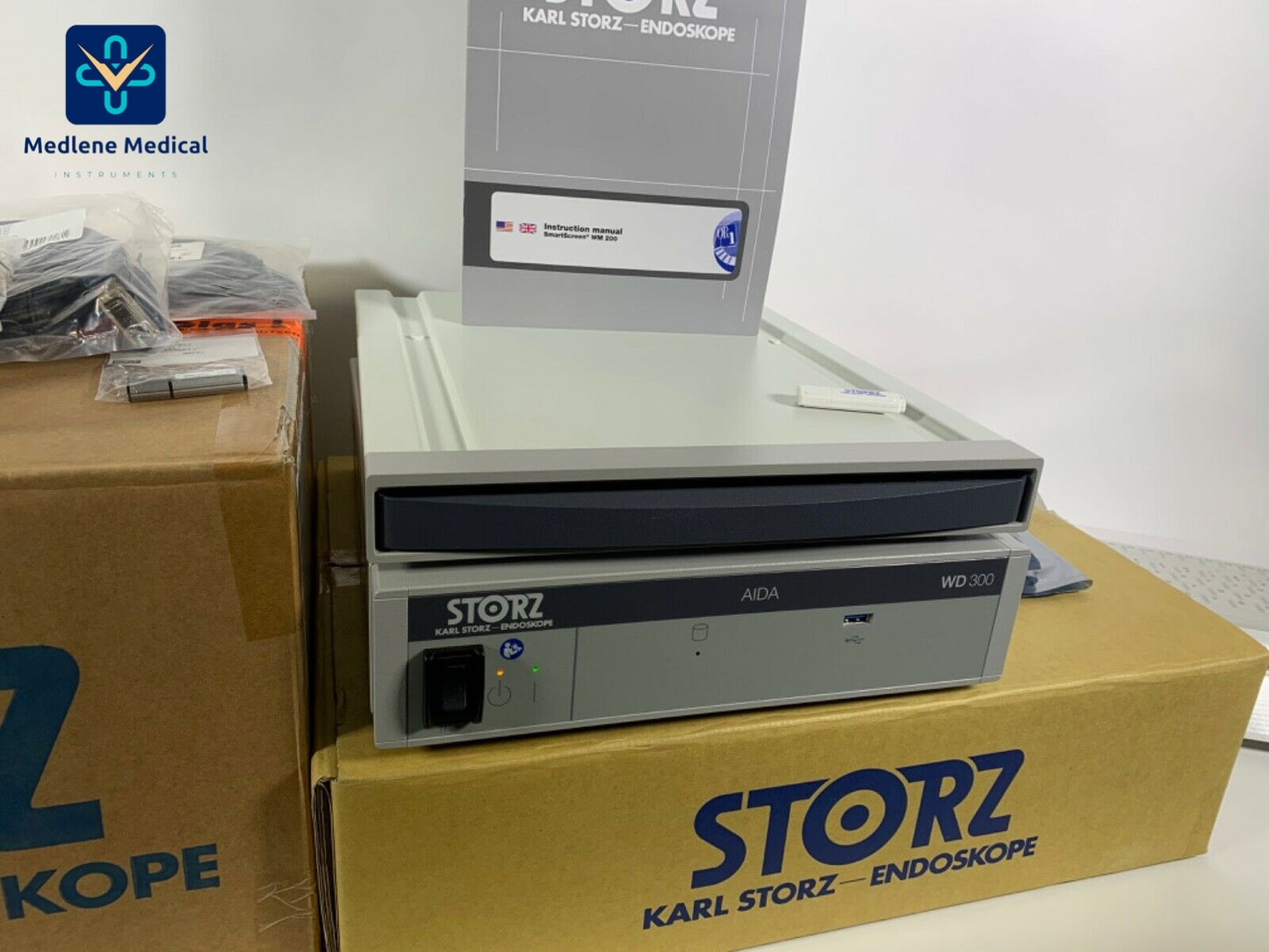

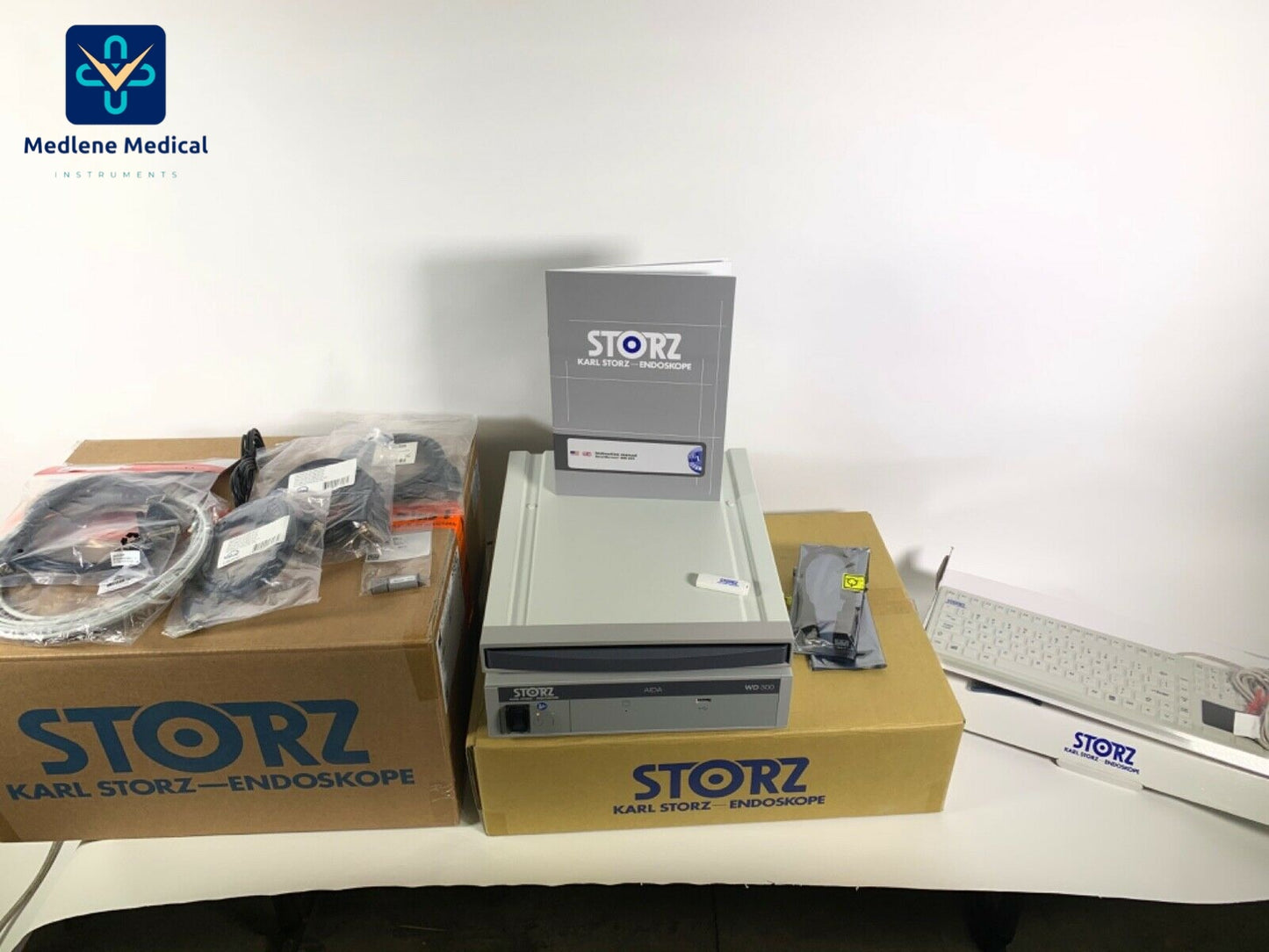

KARL STORZ AIDA WD 300 4K SYSTEM
KARL STORZ AIDA WD 300 4K SYSTEM
KARL STORZ AIDA WD 300 4K System can be used on equipment carts or in integrated operating rooms and allows the recording and archiving of still images and video sequences in FULL HD, 3D and 4K quality.
The intelligent export manager provides considerable time savings as the recorded data is automatically saved in the background after each intervention.
The safety of the patients and the staff is the top priority in every OR – thanks to the integrated and freely configurable checklist. The security of the data is also guaranteed.
Combined with SCENARA®, a modular software solution, KARL STORZ offers the perfect solution for capturing, archiving, retrieving and managing image and video data.
The KARL STORZ AIDA WD 300 4K System is designed for use in the operating rooms of clinics and hospitals.
The KARL STORZ AIDA® WD 300 serves to aid the implementation and documentation of medical interventions aimed at examining and treating patients.

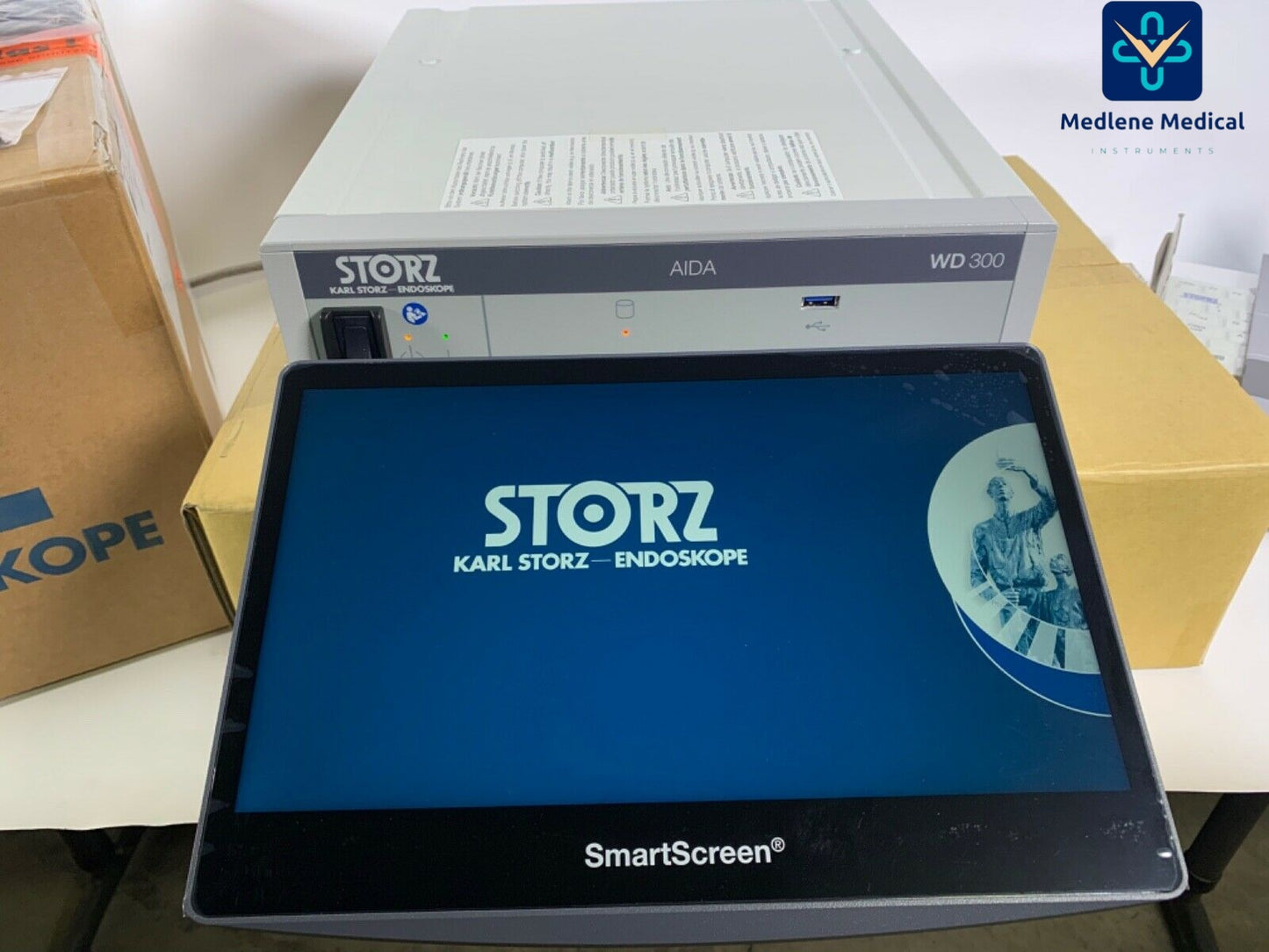

When performing medical interventions, the KARL STORZ AIDA® WD 300 can be used to do the following from the central touchscreen:
•Control non-medical devices;
•Transfer and display video and audio signals from the integrated signal sources to the integrated peripheral devices;
•Record, save, edit, forward and print medical examinations and interventions in the form of still images, video sequences and audio sequences
AIDA® offers the possibility to capture and store still images and video sequences in FULL HD, 4K and 3D quality. This standalone solution enables the comprehensive implementation of all documentation requirements arising in surgical procedures.
– AIDA® seamlessly fits into existing organizational structures – onto equipment carts, into integrated ORs and existing IT infrastructures (DICOM, HL7)
– AIDA® offers the possibility to record two image sources simultaneously
– AIDA® improves safety thanks to an integrated and freely configurable safety checklist
– AIDA® reduces turnover time due to the Intelligent Export Manager with automated data storage in the background
– AIDA® in combination with SCENARA® provides a complete solution for image and video management inside and outside the OR
KARL STORZ AIDA WD 300 4K System Technical data :
Input voltage: 100 VAC – 240 VAC
Input frequency: 50 Hz – 60 Hz
Power consumption max.:5 – 2 A
Dimensions (mm): 305 x 74.5 x 355 (W x H x D)
Weight max.: 6.0 kg
Degree of protection against electric shock:Class I
Degree of protection against humidity:IPX0
Hard drive capacity:2 TB
RAM:16 GB
CPU:Intel® CoreTM i7-6700@3.4 GHz
Operating system:Windows 10 IoT Enterprise
Mode of operation:Continuous
Product features
Product features
Made in highest quality, surgical grade stainless steel with satin finish to reduce glare. The instrument can be sterilized and reused.
Materials and care
Materials and care
PRODUCTS
This reprocessing instruction applies to reusable surgical and endoscopic instruments supplied by MEDLENE Medical.
GENERAL
Reusable surgical instruments from MEDLENE Medical can be used by medical professionals for a surgical procedure and can be reused after qualified reprocessing.
The professional user selects the appropriate instruments according to the intended function, the tissue to be manipulated and the anatomical structures.
WARNINGS AND PRECAUTIONS
MEDLENE Medical instruments must be cleaned, disinfected,
and sterilized before first use. Protective caps and transport packaging must be
removed beforehand.
A complete functional check must be carried out before each use. Improper use and overstraining due to twisting / levering can lead to breaks and permanent deformation.
Do not use metal brushes or abrasives, as there is a risk of corrosion due to surface damage. The safe
combination of instruments with each other or of instruments with implants must be checked by the user before clinical use.
Be careful when handling sharp tips and cutting edges - risk of injury.
In case of patients with Creutzfeldt-Jakob disease (CJK), suspected CJK or possible variants of this disease, the applicable national regulations regarding the preparation of instruments must be applied. Never leave instruments in disinfectant solution for too long. Follow the instructions of the respective manufacturer.
