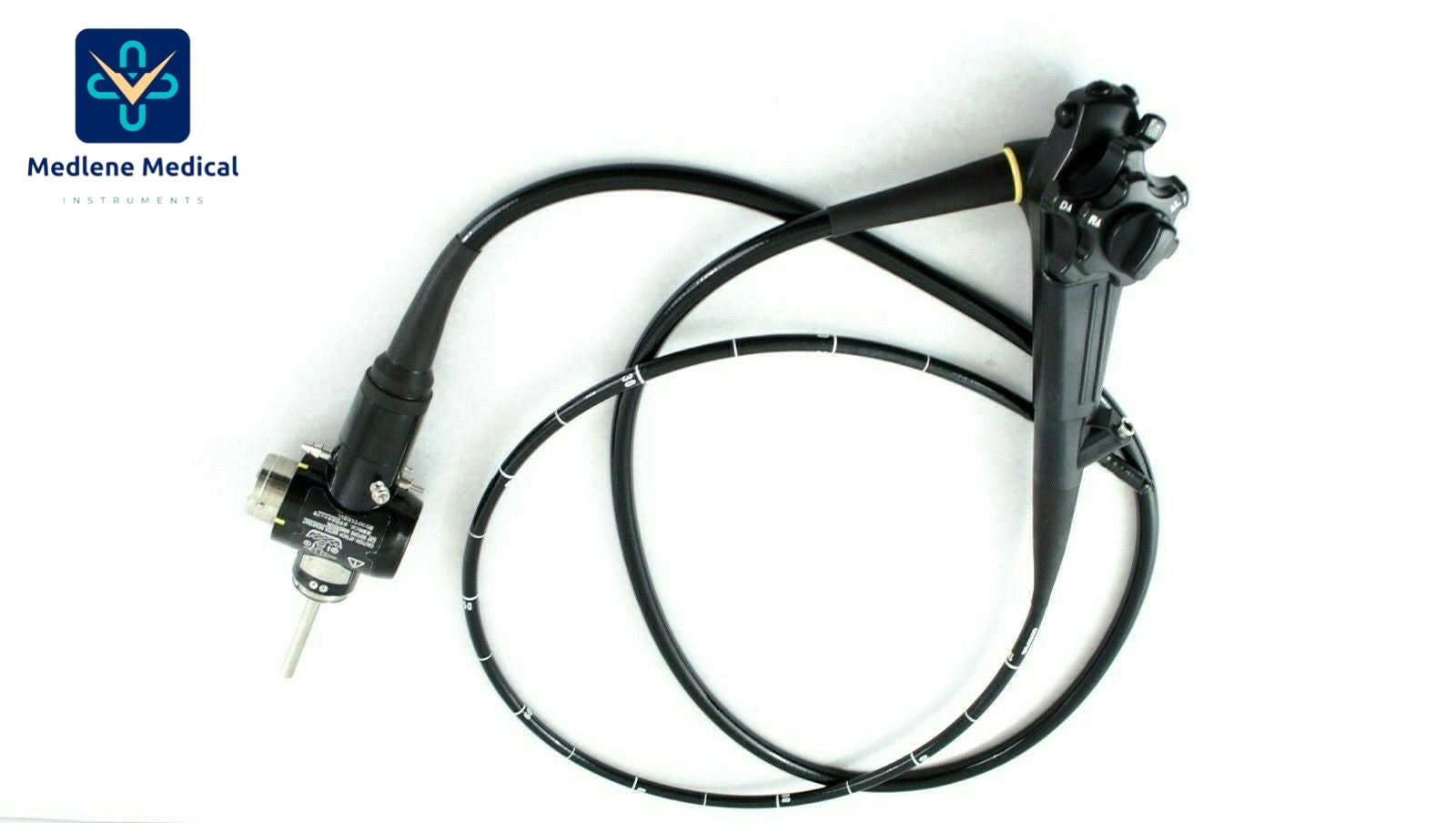

OLYMPUS GIF-Q165 GASTROSCOPE
OLYMPUS GIF-Q165 GASTROSCOPE
The OLYMPUS GIF-Q165 GASTROSCOPE high image quality with a large display for optimal procedural functionality.
With a slim design, 140 field of view and built-in Scope ID function, the OLYMPUS GIF-Q165 GASTROSCOPE is ideal for upper GI endoscopy and routine therapeutic applications.
Combining a comprehensive 140 field of view with clear image quality and large display, the Olympus GIF-Q165 gastroscope provides powerful imaging performance and functionality.
In addition, with ergonomic user design, super slim 9.2mm outer diameter, 2.8mm working instrument channel and wide four-way angulation, the OLYMPUS GIF-Q165 GASTROSCOPE enables excellent scope manoeuvrability.
A built-in memory chip stores individual gastroscope information, facilitating endoscopy suite management.
Large image size:
Clear, sharp high-quality images from a large-size display enable clear differentiation of subtle textures and fine capillaries during upper GI endoscopy.
Fully compatible:
The GIF-Q165 gastroscope is fully compatible with CV-180, 165, 160, 145, and 140 video centres.
A slim design:

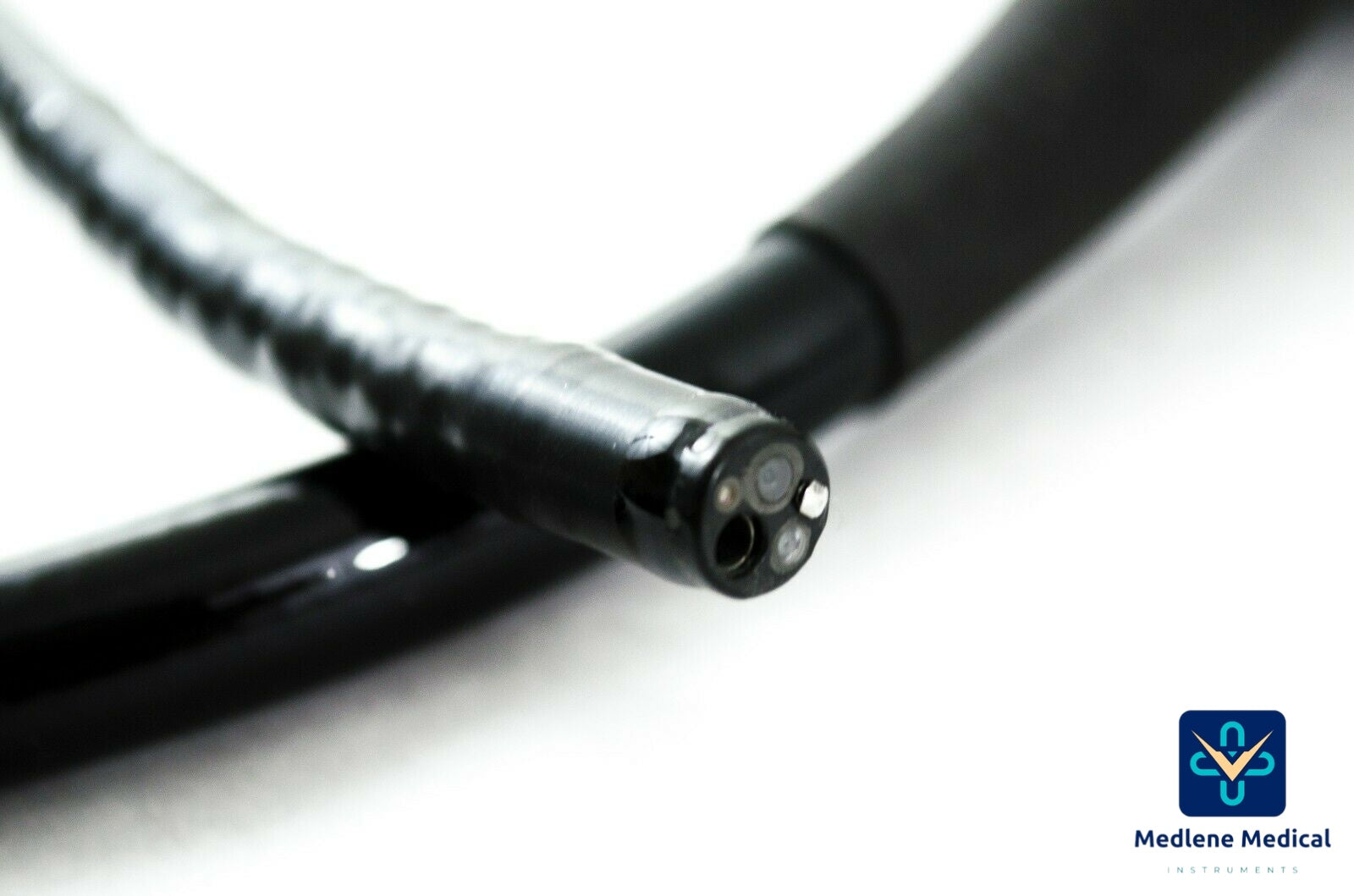

A slim 9.2mm outer diameter with a 2.8mm instrument channel provides the GIF-Q165 with excellent insertion capability.
Built-in memory:
A built-in Scope ID memory chip stores individual gastroscope information, facilitating endoscopy suite management.
Excellent manoeuvrability:
The wide four-way angulation range (210 up, 90 down, 100 left/right) enables comprehensive examination of the upper GI tract.
140 Field of View:
A broad field of view enables observation of a wide area.

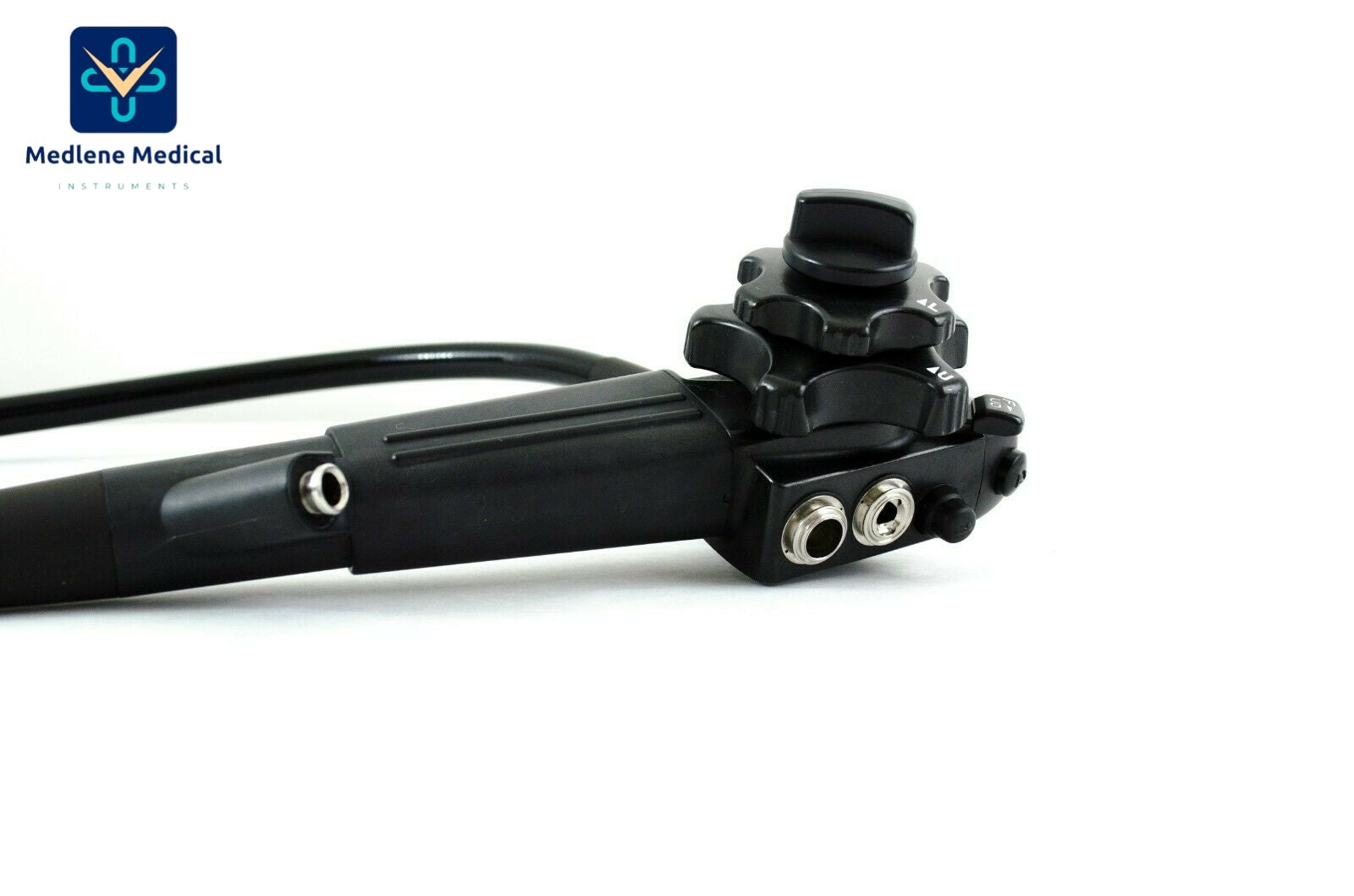

Designed for ease-of-use:
Ergonomically designed for easy user access to buttons, with user-selectable switches for improved gastroscopy operability.
Optical System:
– Field of view: 140
– Direction of view: Forward viewing
– Depth of field: 3 to 100 mm
Insertion Tube:
– Outer diameter:9.2 mm
Bending Section:
– Angulation range: Up 210, Down 90, Right 100, Left 100
– Total Length:1,345 mm
Instrument:
– Channel:Inner diameter:2.8 mm
– Minimum visible distance: 3 mm from the distal en
Product features
Product features
Made in highest quality, surgical grade stainless steel with satin finish to reduce glare. The instrument can be sterilized and reused.
Materials and care
Materials and care
PRODUCTS
This reprocessing instruction applies to reusable surgical and endoscopic instruments supplied by MEDLENE Medical.
GENERAL
Reusable surgical instruments from MEDLENE Medical can be used by medical professionals for a surgical procedure and can be reused after qualified reprocessing.
The professional user selects the appropriate instruments according to the intended function, the tissue to be manipulated and the anatomical structures.
WARNINGS AND PRECAUTIONS
MEDLENE Medical instruments must be cleaned, disinfected,
and sterilized before first use. Protective caps and transport packaging must be
removed beforehand.
A complete functional check must be carried out before each use. Improper use and overstraining due to twisting / levering can lead to breaks and permanent deformation.
Do not use metal brushes or abrasives, as there is a risk of corrosion due to surface damage. The safe
combination of instruments with each other or of instruments with implants must be checked by the user before clinical use.
Be careful when handling sharp tips and cutting edges - risk of injury.
In case of patients with Creutzfeldt-Jakob disease (CJK), suspected CJK or possible variants of this disease, the applicable national regulations regarding the preparation of instruments must be applied. Never leave instruments in disinfectant solution for too long. Follow the instructions of the respective manufacturer.
