Stryker 1288 HD Video Endoscopy System w/L9000, SDC Ultra, Wise Monitor
Stryker 1288 HD Video Endoscopy System As the third generation in Stryker’s HD 3-Chip Camera line, the 1288 HD 3-Chip Camera features a 1920 x 1080p resolution along with nine specialty settings, resulting in optimum color resolution and brightness.
Additional benefits include wireless transmission capabilities, four fully programmable buttons on the camera head, HD and HDTV outputs, and a touch screen LCD interface for easy navigation.
By allowing for backwards compatibility with past generation digital capture devices, scopes, and various flat panels, while also offering future capabilities with an optional fiber optic board, the Stryker 1288 HD Video Endoscopy System Camera continues to offer new solutions for improved visualization within the OR.
The 1288 HD Camera is indicated for use in general laparoscopy, nasopharyngoscopy, ear endoscopy, sinuscopy, and plastic surgery wherever a laparoscope/endoscope/arthroscope is indicated for use. It connects to the camera console and captures video and photographic images, which it relays to the camera console.

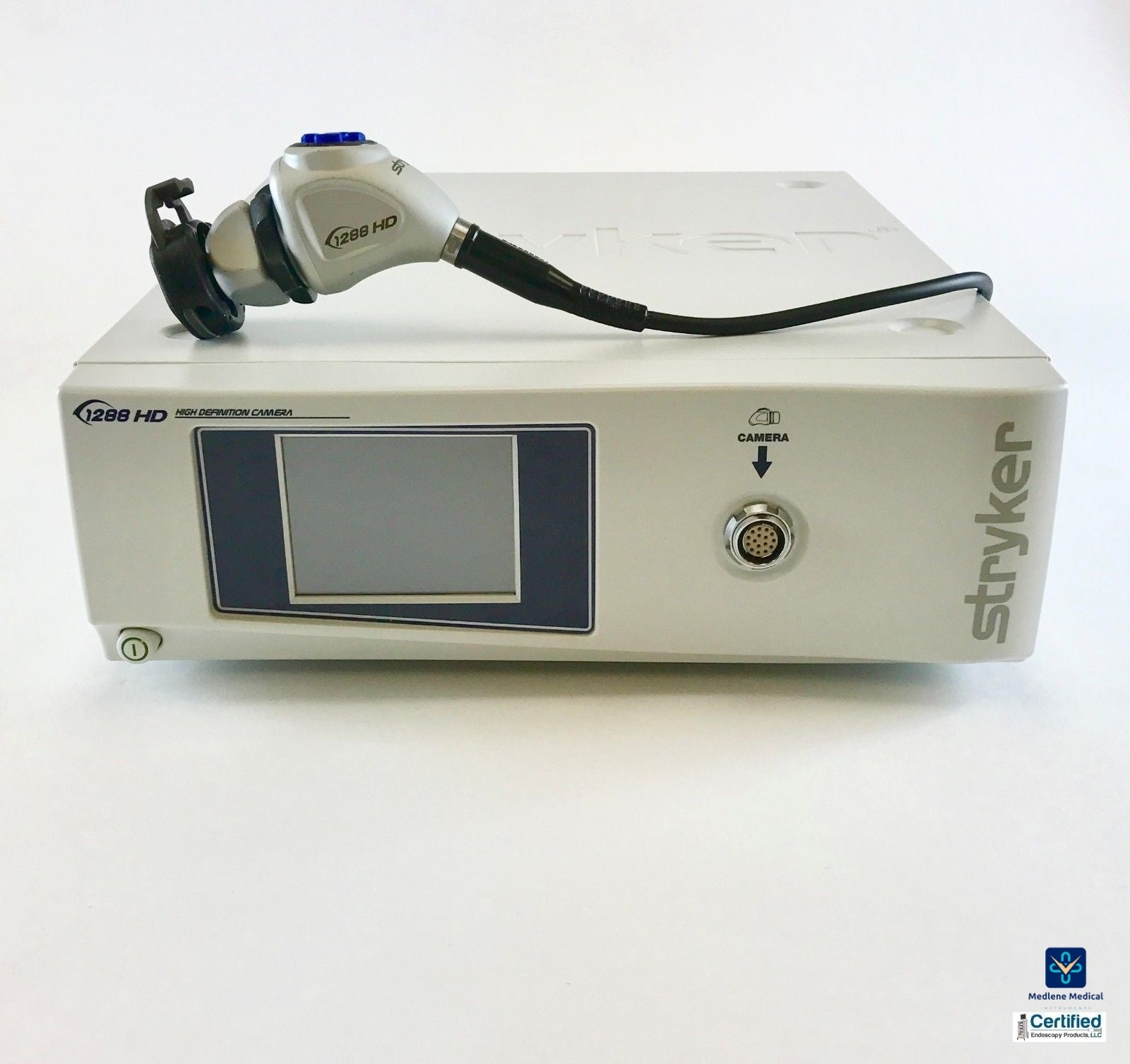

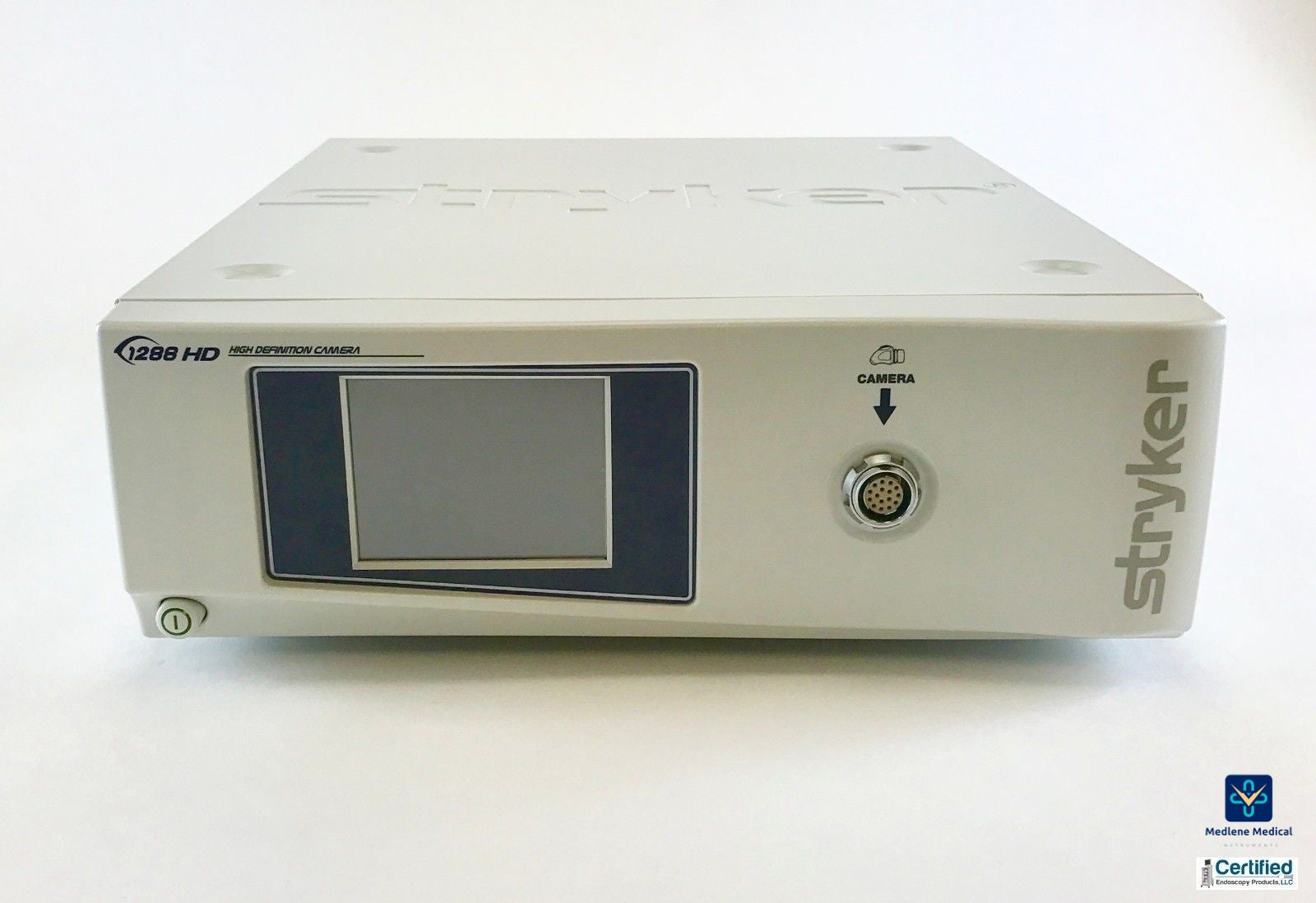

The Camera Control Unit (CCU), or camera console, is the control center for the 1288 HD Medical Video Camera, and processes the video and photographic images captured during the surgical procedure.
The C-Mount coupler threads onto the face of the camera head, enabling a scope to be attached to the camera. It provides a focusing ring to adjust image sharpness.
Stryker 1288 HD Video Endoscopy System System Features:
The Stryker 1288 HD Video Endoscopy System offers facilities a simple, high-quality solution for all of their endoscopic imaging needs. Each component � camera, light source, monitor and insufflator � fits conveniently into the mobile cart for maximum portability.
Components:
– Stryker 1288 HD 3-Chip Endoscopic Camera:
Crisp, 1920x1080p resolution with nine specialty settings for optimum visibility. Complete with four fully-programmable camera head buttons, touchscreen LCD interface and wireless transmission capabilities.
– Stryker X8000 Light Source:
Bright 300-watt xenon elliptical bulb delivers accurate, detailed, state-of-the-art imaging. When used with the Stryker 1288 HD 3-Chip Endoscopic Camera, the light source allows clinicians to capture high-definition video during any procedure.
– Stryker 40L Core Insufflator:
Superior performance with unprecedented safety and reliability. Maintains pneumoperitonium under the most extreme conditions with a multitude of safety features.
– Each tower includes a high-definition video monitor and a mobile cart for easy transport throughout your facility.
Specifications
Stryker 1288 HD Video Endoscopy System 3-Chip Endoscopic Camera:
– Digital/Analog: Two Digital Video Interface (DVI)/RGBHV | 1280 x 1024 (HD), 720p, 1080p, (HDTV) format
– Enhancement: 16 levels (switchable)
– Imaging System: 1/3� Progressive Scan CCDs, high definition
Stryker X8000 Light Source
– Bulb Type: 300 Watt Xenon (elliptical)
– Bulb Life: Approx. 500 hours
– Weight: 16.0 lbs (7.3 kg)
– Electric: 100 – 120 VAC, 50/60 Hz, 450 W | 220 – 240 VAC, 50/60 Hz, 450 W
Stryker 40L Core Insufflator:
– Power Supply Input: 100-240 Vac; 3.5A
– Frequency: 50-60 Hz
– Weight: 19.84 lbs (8.9 kg)

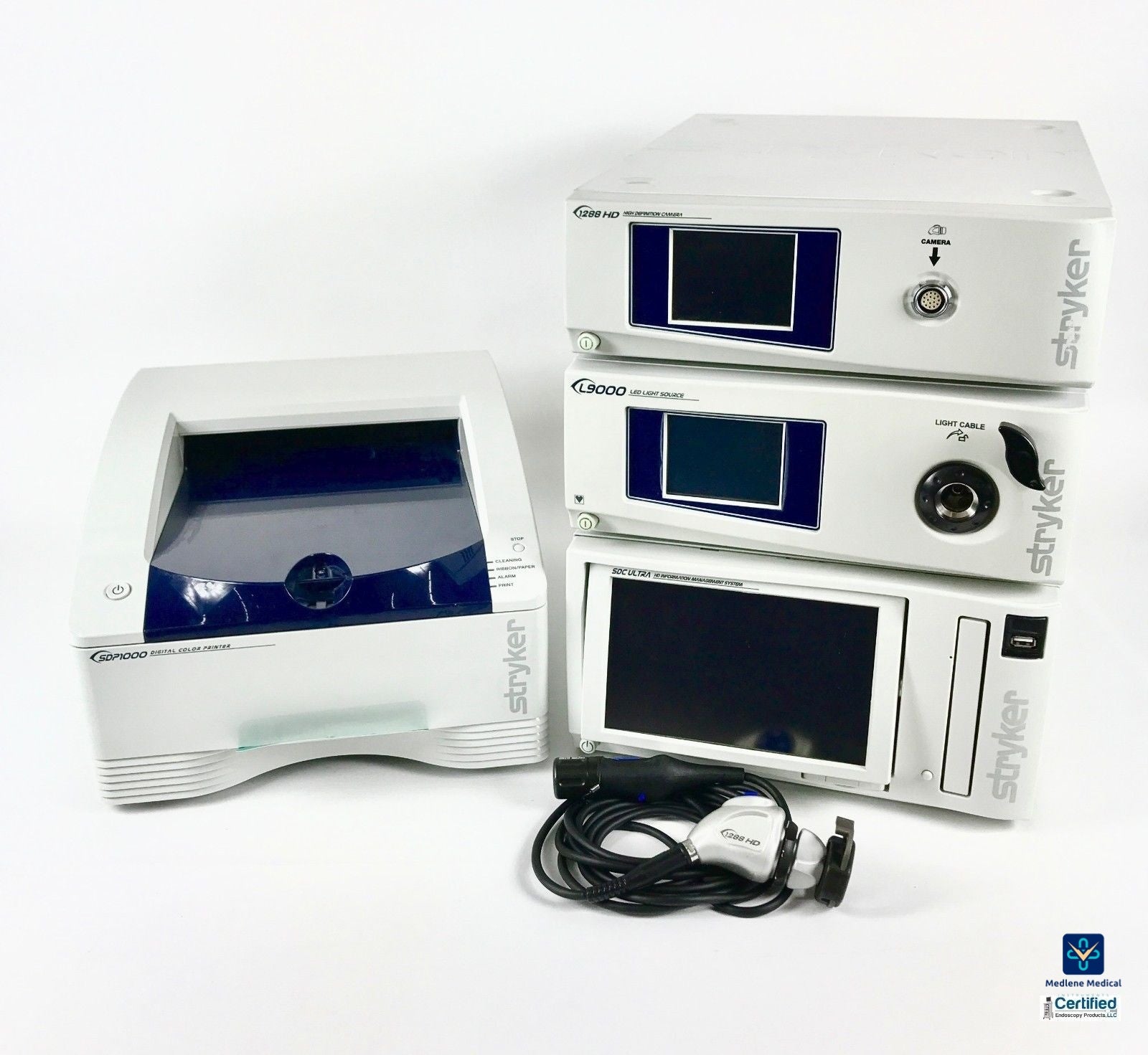

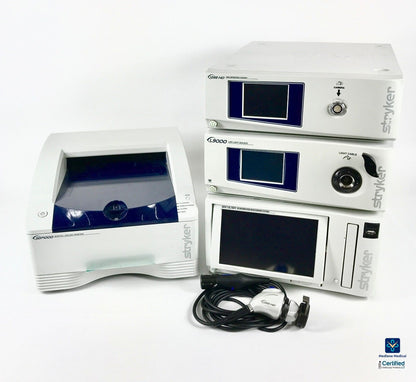

Included:

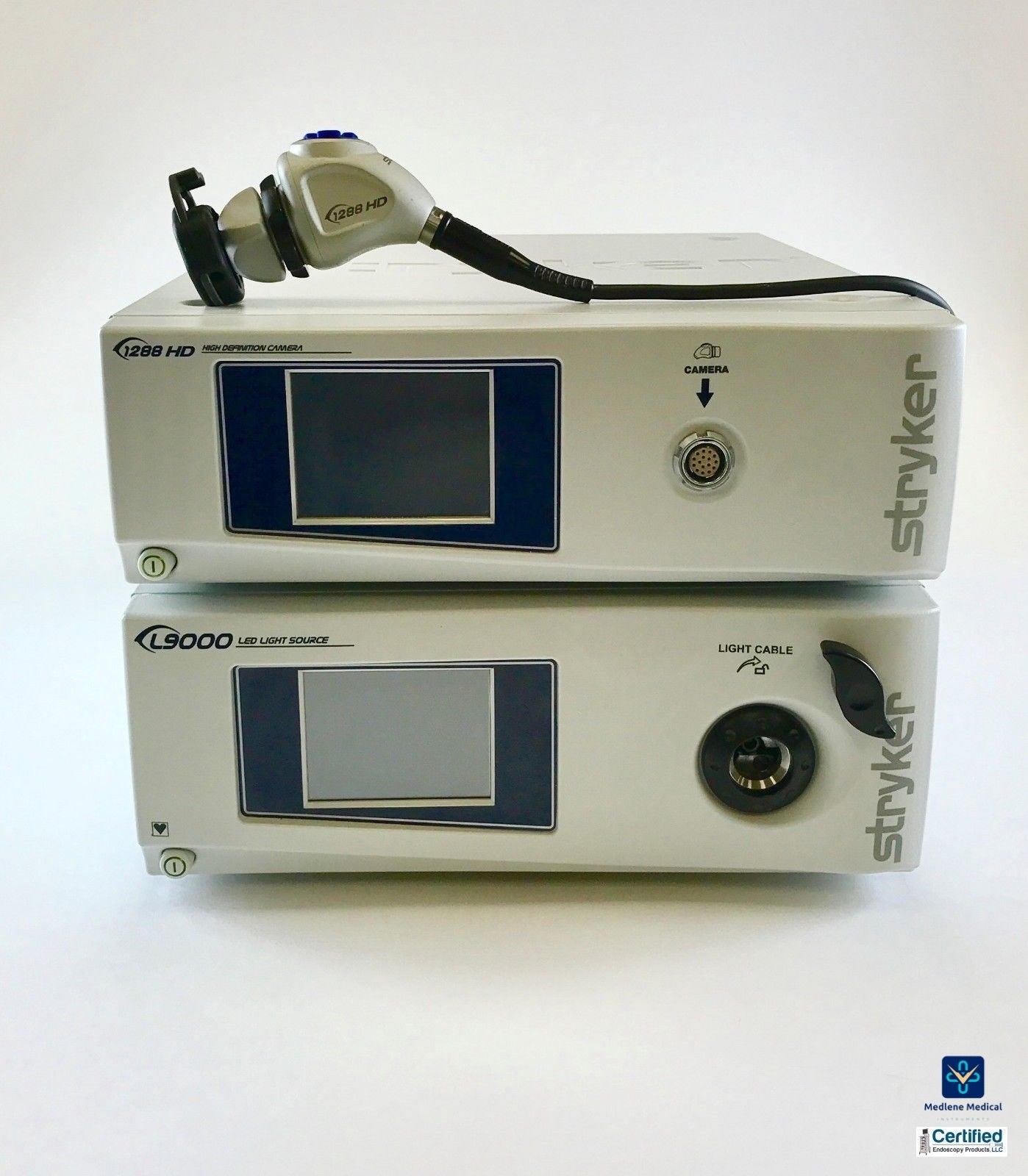

-Stryker 1288 HD Camera Control Unit

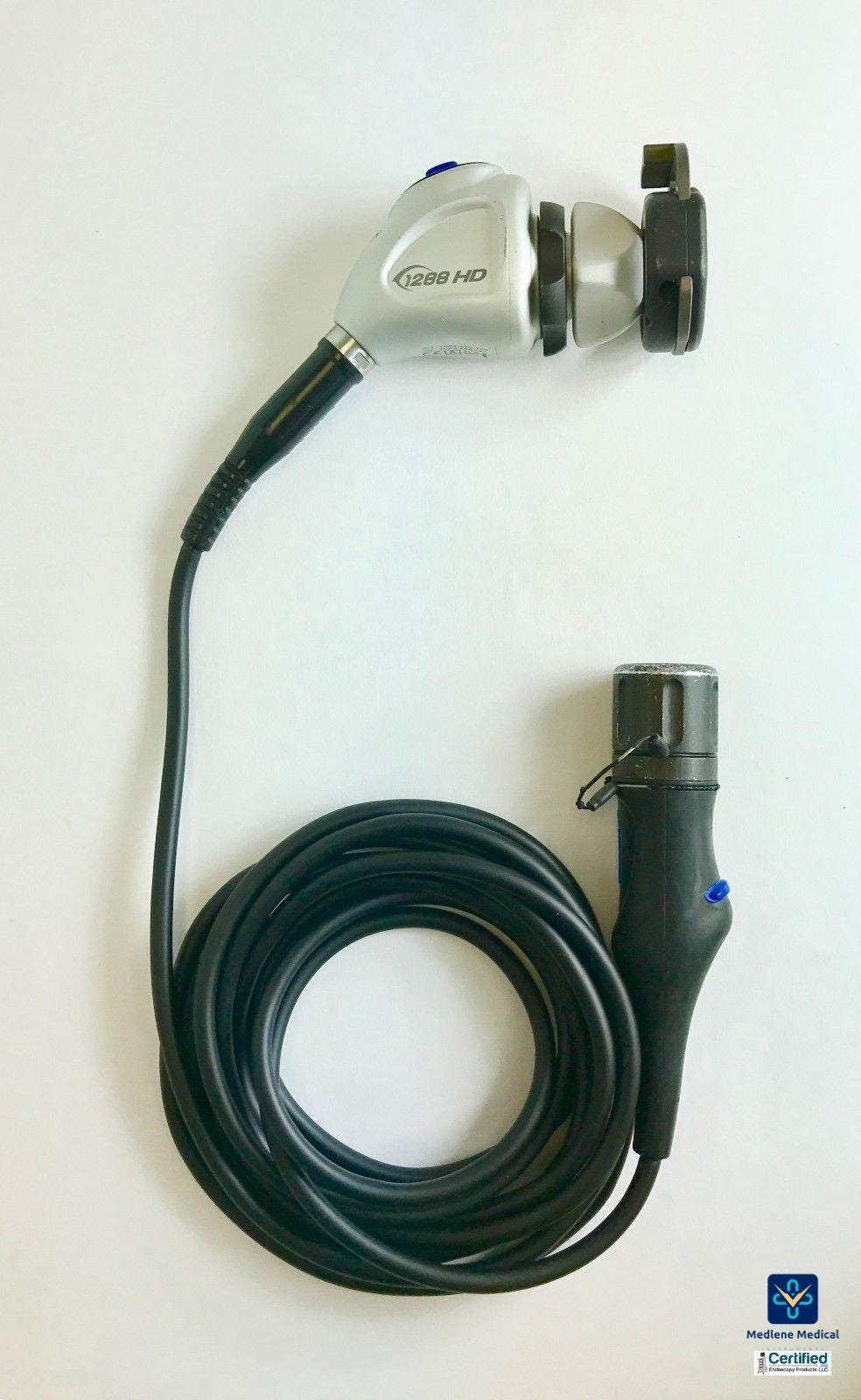

-Stryker 1288 HD Camera Head and Coupler
-Stryker L9000 LED Light Source w/Fiber Optic Light Cable
-Stryker SDC Ultra HD Information Management System
-Stryker Wise 26″ HD Monitor w/Power Brick and New Screen
-Stryker Wise Transmitter w/Blue Token
-Power, SDC & Video Cables Included
Product features
Product features
Made in highest quality, surgical grade stainless steel with satin finish to reduce glare. The instrument can be sterilized and reused.
Materials and care
Materials and care
PRODUCTS
This reprocessing instruction applies to reusable surgical and endoscopic instruments supplied by MEDLENE Medical.
GENERAL
Reusable surgical instruments from MEDLENE Medical can be used by medical professionals for a surgical procedure and can be reused after qualified reprocessing.
The professional user selects the appropriate instruments according to the intended function, the tissue to be manipulated and the anatomical structures.
WARNINGS AND PRECAUTIONS
MEDLENE Medical instruments must be cleaned, disinfected,
and sterilized before first use. Protective caps and transport packaging must be
removed beforehand.
A complete functional check must be carried out before each use. Improper use and overstraining due to twisting / levering can lead to breaks and permanent deformation.
Do not use metal brushes or abrasives, as there is a risk of corrosion due to surface damage. The safe
combination of instruments with each other or of instruments with implants must be checked by the user before clinical use.
Be careful when handling sharp tips and cutting edges - risk of injury.
In case of patients with Creutzfeldt-Jakob disease (CJK), suspected CJK or possible variants of this disease, the applicable national regulations regarding the preparation of instruments must be applied. Never leave instruments in disinfectant solution for too long. Follow the instructions of the respective manufacturer.
