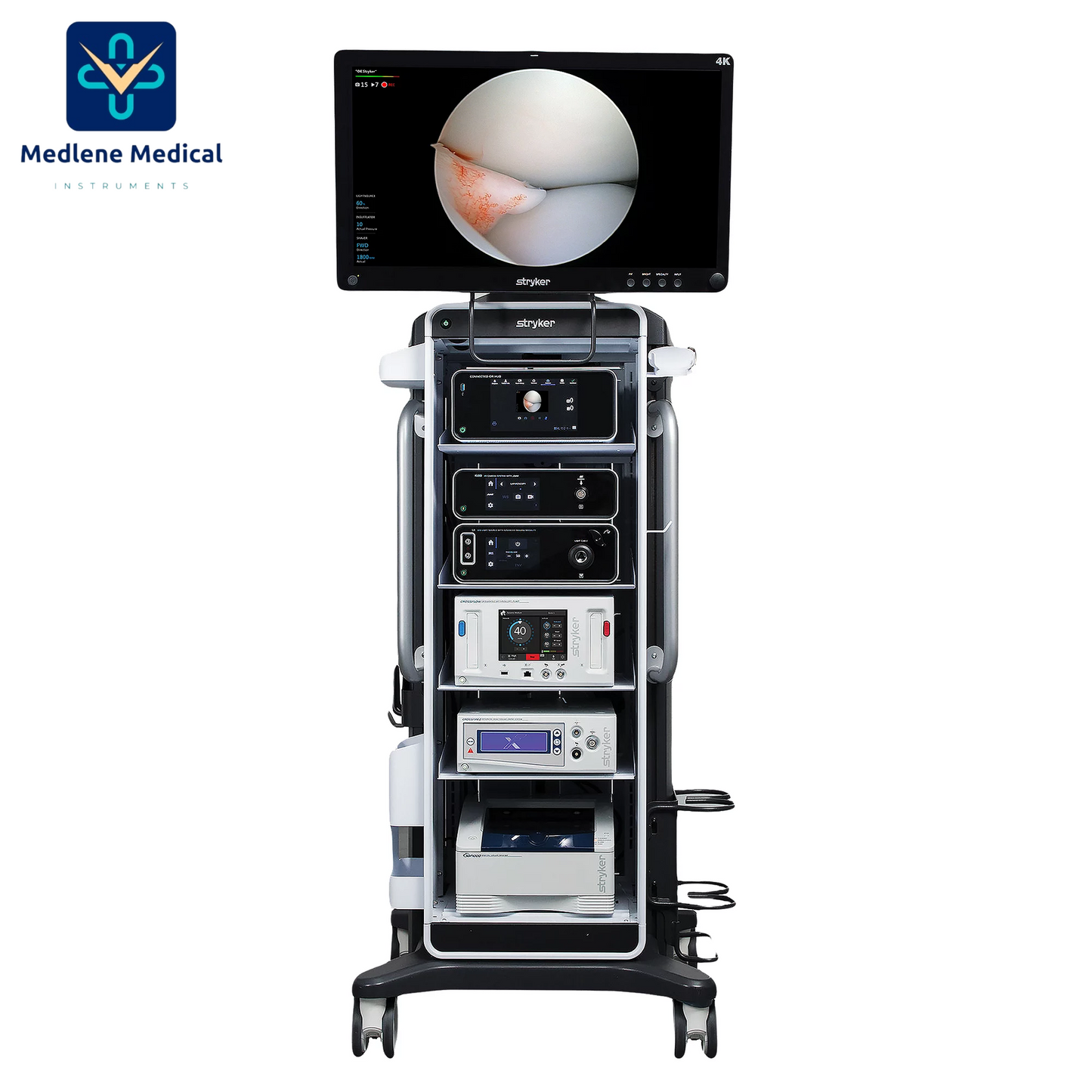

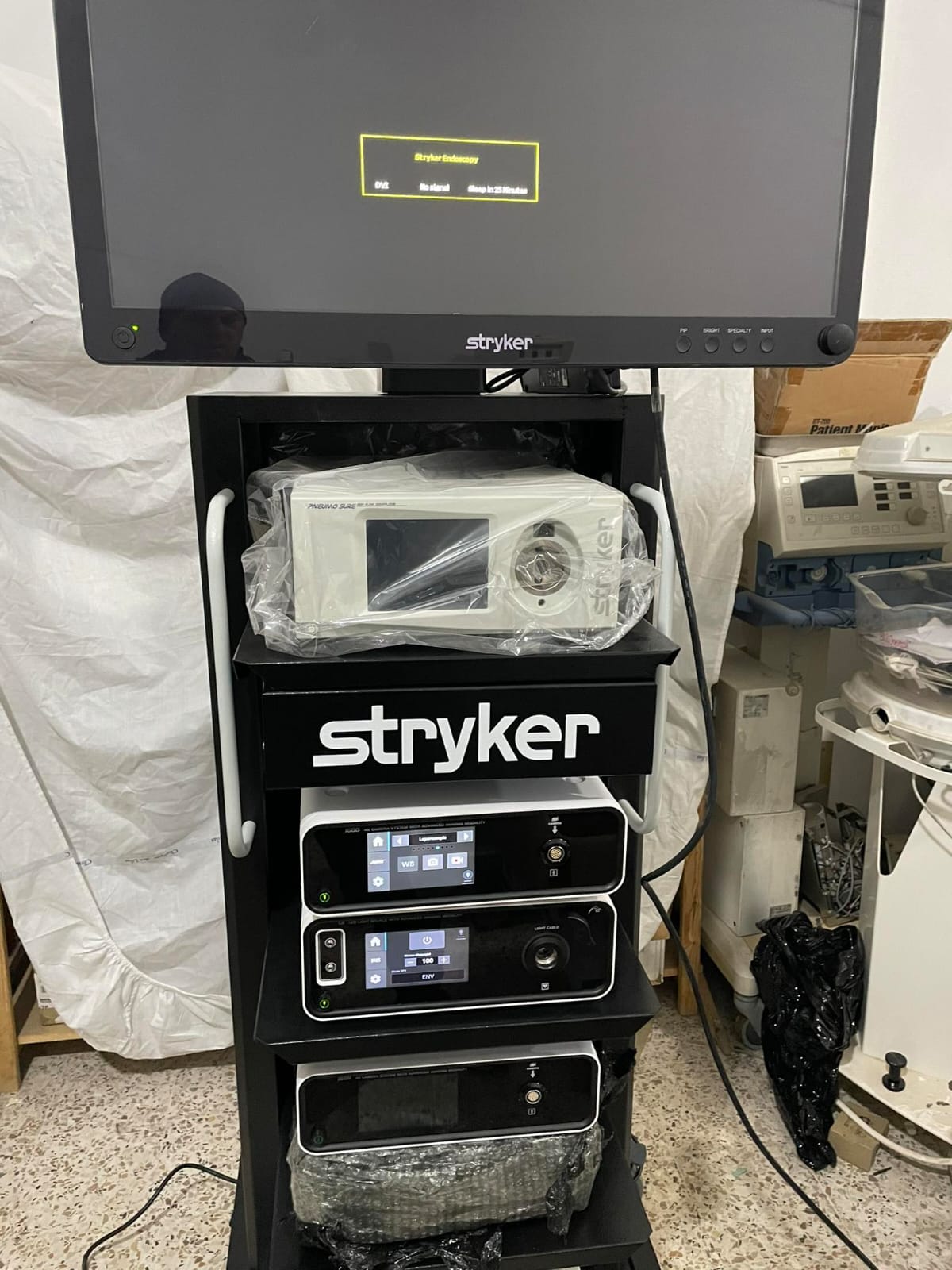

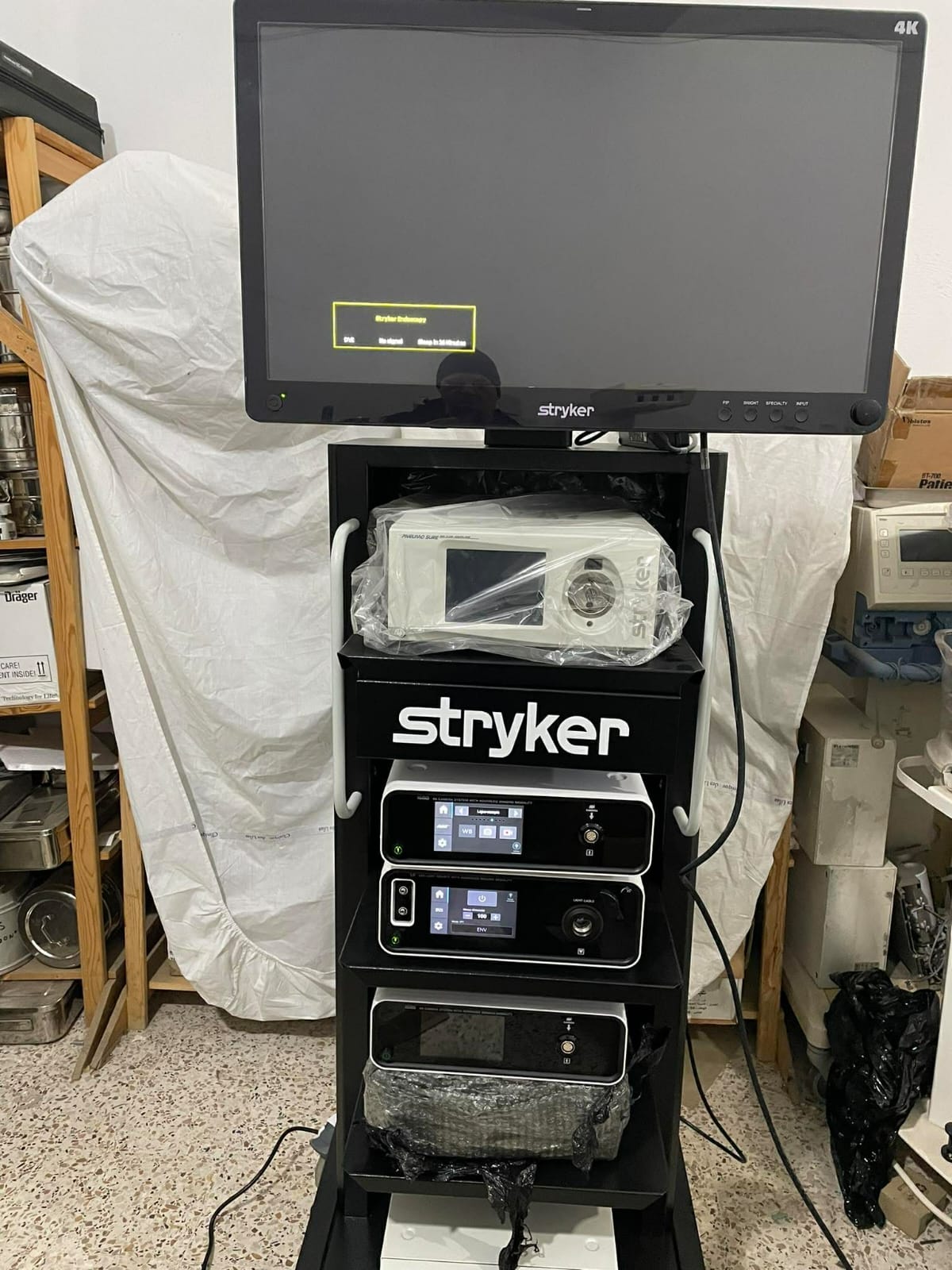

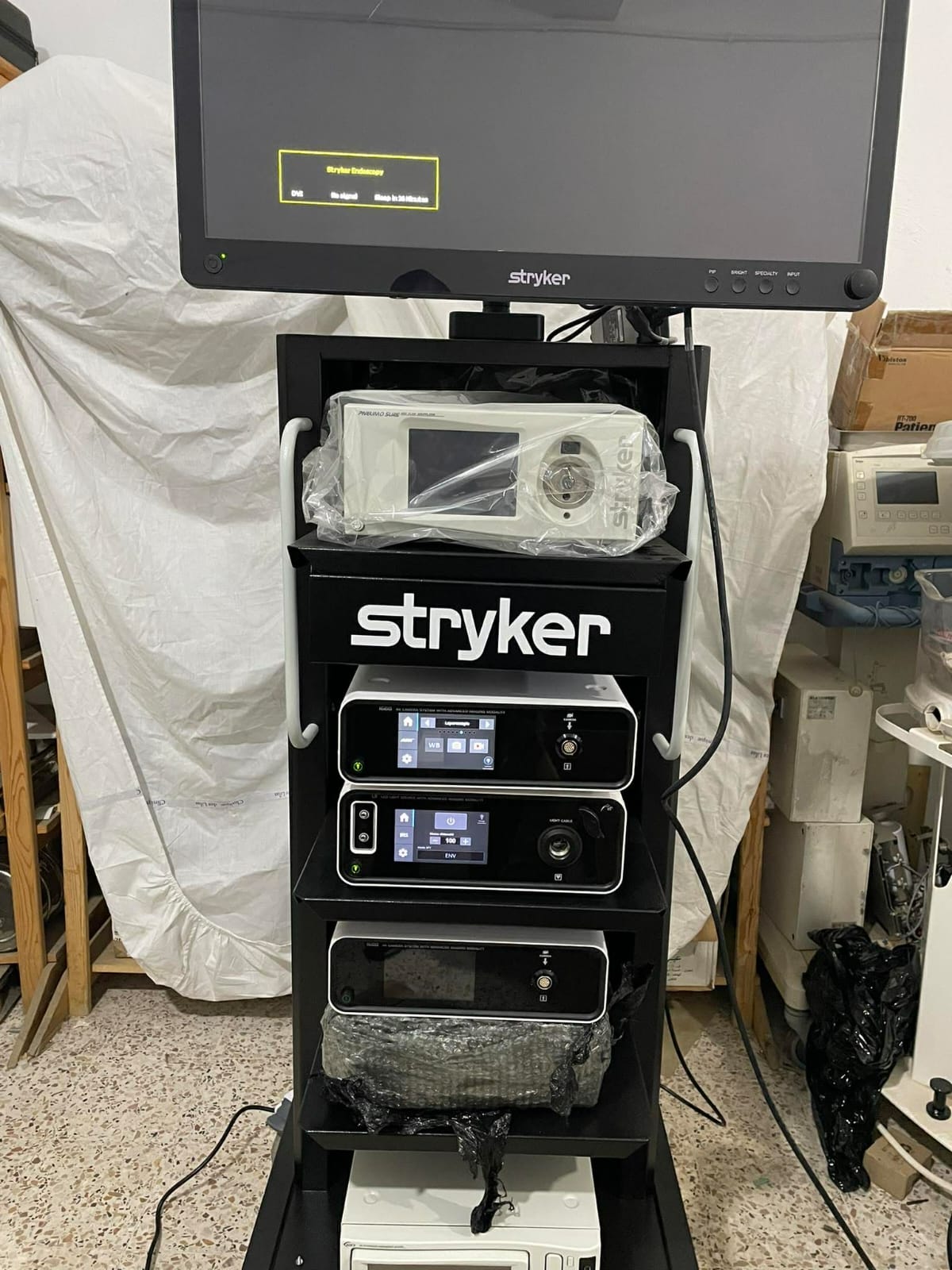

Stryker 1688 4K Laparoscopy Stack System With Advanced Imaging Modality
Stryker 1688 4K Laparoscopy Stack System With Advanced Imaging Modality
System includes following:
- Stryker 1688 4K AIM Camera Control Unit
- Stryker 1688 4K AIM Camera Head
- Stryker L11 LED Light Source
- Stryker 32" 4K Surgical Display Monitor
- Stryker Pneumosure CO2 Insufflator
-
Stryker SDC3 information management system
Experience the incredible capabilities of the Stryker 1688 AIM 4K Laparoscopy Stack System. This tower boasts ultra high definition, providing unmatched clarity and precision during surgical procedures.
Stryker 1688 AIM 4K Video System
The Stryker 1688 AIM 4K Laparoscopy Stack System is an advanced laparoscopic camera system designed to deliver high-quality live video during surgical endoscopic procedures in 4K resolution. The 1688 4K system provides surgeons with excellent visualisation for keyhole surgery and minimum invasive procedures in ultra high definition (4K) resolution

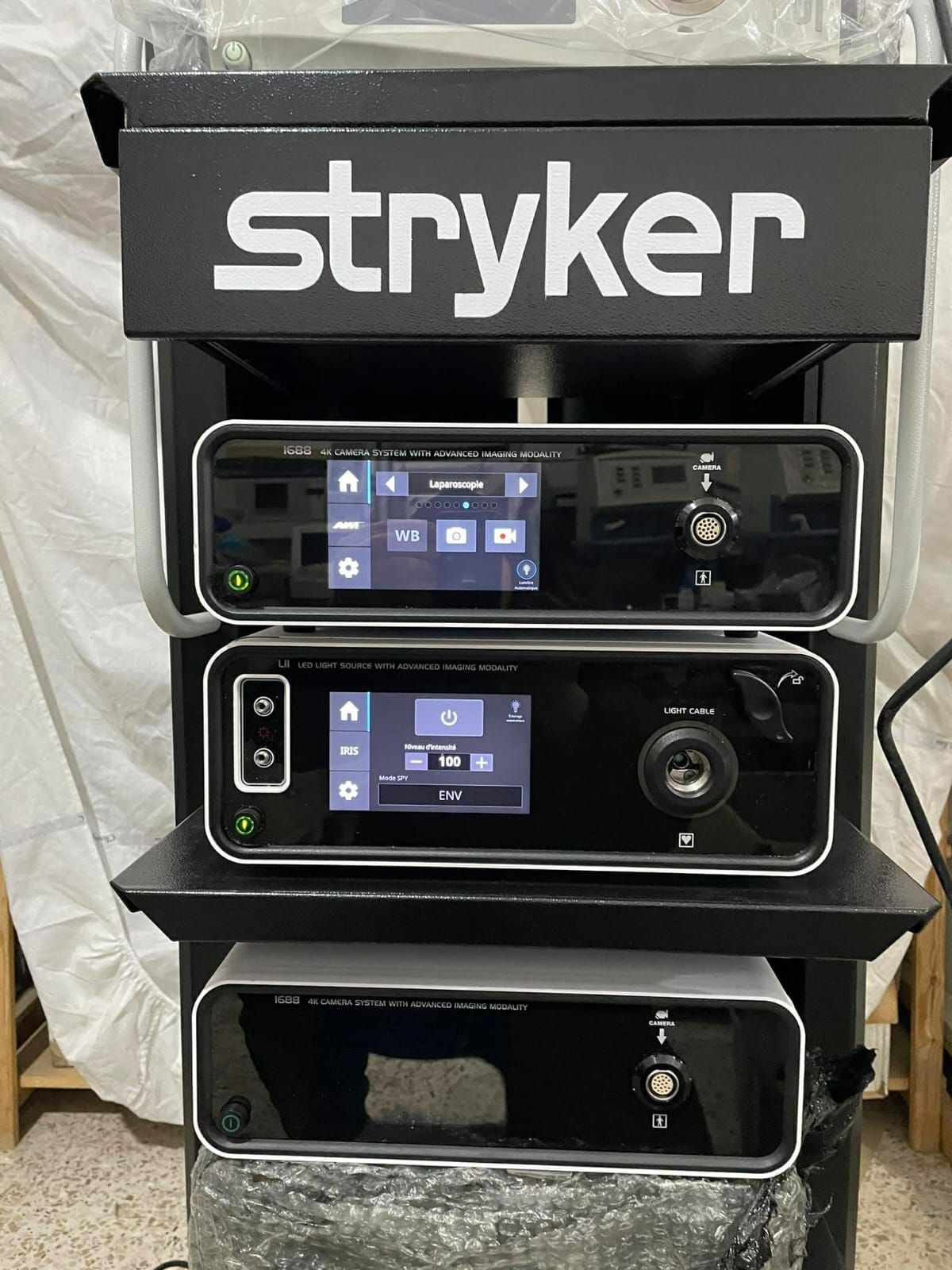

Stryker 1688 Camera Control Unit (CCU):
The 1688 4K Camera Control Unit (CCU) with Advanced Imaging Modality performs as the central control of our endoscopy system. The platform offers the visual experience of video and photographic images during surgical procedures in the visible and infrared spectrum through 5 image modalities and functionalities.
Stryker 1688 AIM 4K with C-Mount or with integrated coupler Camera Head
Stryker L11 LED Light Source:
The L11 LED Light Source is designed to automatically provide consistent lighting based on anatomy of patients. The proprietary autolight technology enables surgeons to focus on the procedure at hand in the following applications:
- Visible light (White Light mode)
- Near-infrared fluorescence (SPY mode)
- Near-infrared transillumination (IRIS mode)
SPY-PHI: (SPY Portable Handheld Imaging System)
The SPY Portable Handheld Imaging (SPY-PHI) System utilises SPY Fluorescence Imaging technology and allows surgeons to visualise circulation, including lymphatics and blood vessels, as well as related tissue perfusion with near infrared fluorescence imaging during a variety of surgical procedures.

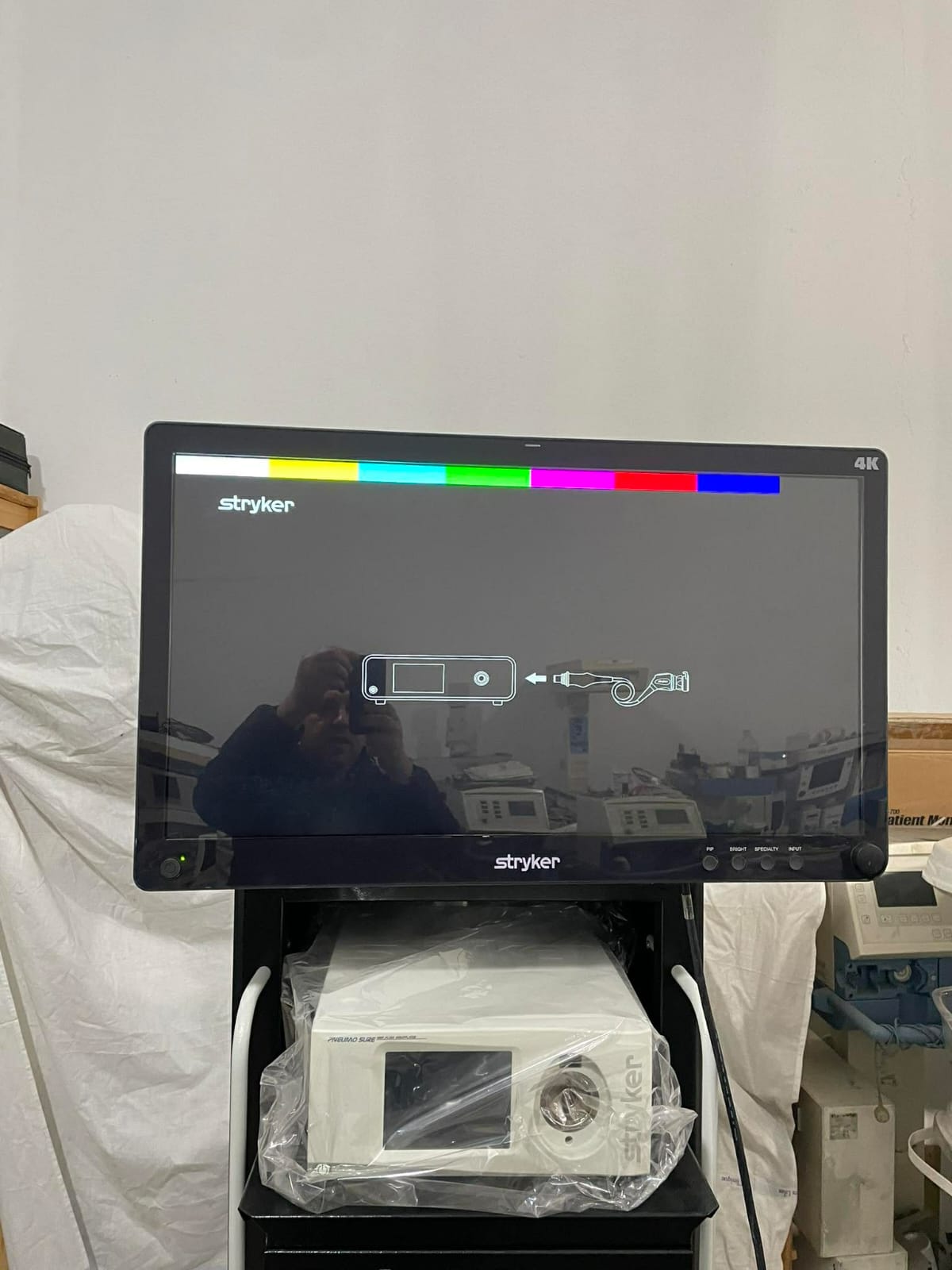

Stryker 32" 4K Surgical Display Monitor:
With the 4K pixel density and 6 more inches of viewing area, this display is designed to provide a brighter, more colourful image compared to previous generations.
Surgical procedures:
- Laparoscopy
- Arthroscopy
- Cystoscopy
-
ENT/Skull
- Hysteroscopy
The 1688 Video Camera is indicated for use in general laparoscopy, nasopharyngoscopy, ear endoscopy, sinuscopy, and plastic surgery wherever a laparoscope/endoscope/arthroscope/sinuscope is indicated for use.
The system's components can fit into a mobile cart for easy portability.
The laparoscopy tower Powers on and produces excellent images, when tested with laparoscope. The System is in Excellent Condition. Our team of product experts ensures that each system is in excellent condition and produces stunning images when tested with a telescope. Contact us today to learn more and get a personalised estimate for your needs. Don't hesitate to ask any questions . We are here to help you make the most informed decision for your medical practice.
Product features
Product features
Made in highest quality, surgical grade stainless steel with satin finish to reduce glare. The instrument can be sterilized and reused.
Materials and care
Materials and care
PRODUCTS
This reprocessing instruction applies to reusable surgical and endoscopic instruments supplied by MEDLENE Medical.
GENERAL
Reusable surgical instruments from MEDLENE Medical can be used by medical professionals for a surgical procedure and can be reused after qualified reprocessing.
The professional user selects the appropriate instruments according to the intended function, the tissue to be manipulated and the anatomical structures.
WARNINGS AND PRECAUTIONS
MEDLENE Medical instruments must be cleaned, disinfected,
and sterilized before first use. Protective caps and transport packaging must be
removed beforehand.
A complete functional check must be carried out before each use. Improper use and overstraining due to twisting / levering can lead to breaks and permanent deformation.
Do not use metal brushes or abrasives, as there is a risk of corrosion due to surface damage. The safe
combination of instruments with each other or of instruments with implants must be checked by the user before clinical use.
Be careful when handling sharp tips and cutting edges - risk of injury.
In case of patients with Creutzfeldt-Jakob disease (CJK), suspected CJK or possible variants of this disease, the applicable national regulations regarding the preparation of instruments must be applied. Never leave instruments in disinfectant solution for too long. Follow the instructions of the respective manufacturer.
